Diagnostic Test

ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)
1. Ignition on, engine not running.
2. With the scan tool, read the active DTCs.
  Is the DTC Active at this time.

  Yes
  - Go To 2
  No
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT CONDITION .

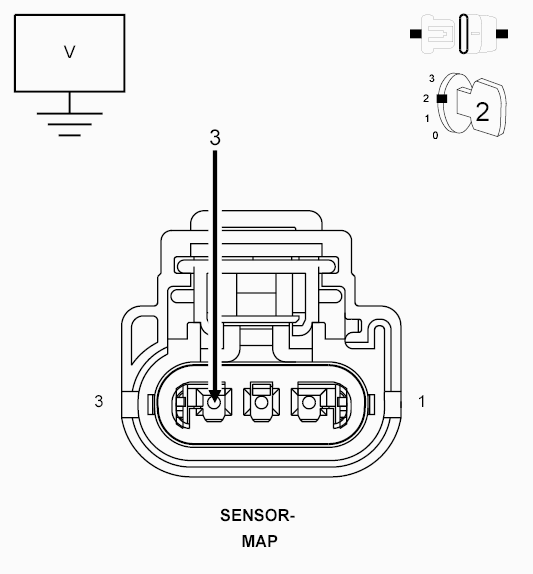

(F856) 5-VOLT SUPPLY CIRCUIT

Fig 1: Checking 5-Volt Supply Circuit Voltage
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the MAP Sensor harness connector.
3. Ignition on, engine not running.
4. Measure the voltage on the (F856) 5-Volt Supply circuit in the MAP Sensor harness connector.
  Is the voltage between 4.5 to 5.2 Volts?

  Yes
  - Go To 3
  No
  - Go To 7
MAP SENSOR
1. With the scan tool, monitor the MAP Sensor voltage with the Sensor harness connector disconnected.
  Is the voltage above 2.2 Volts?

  Yes
  - Verify that there is good pin to terminal contact in the MAP Sensor and Powertrain Control Module connectors. If OK, replace the MAP Sensor in accordance with the service information. Refer to SENSOR, MANIFOLD AIR PRESSURE (MAP), REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 4

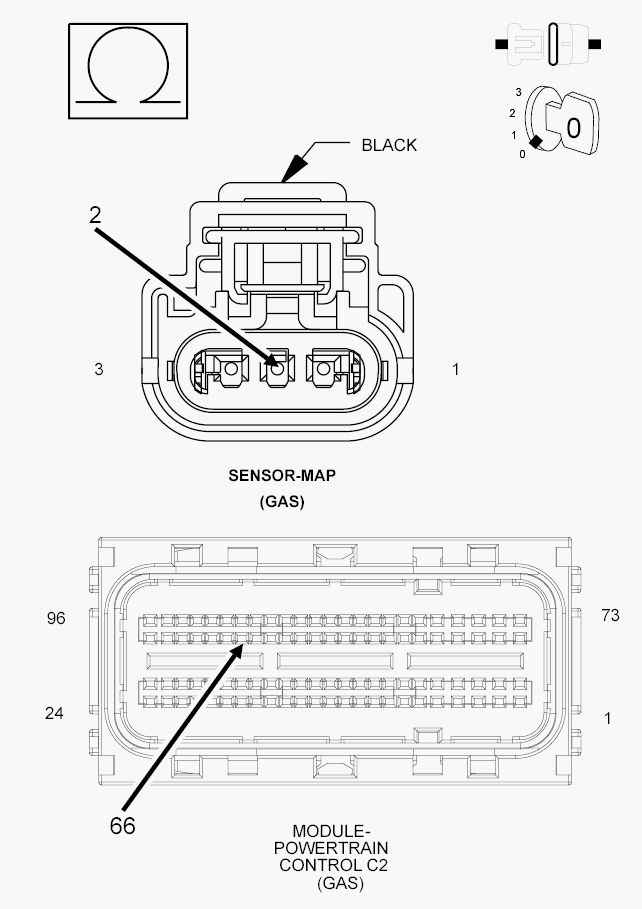

(K1) MAP SIGNAL CIRCUIT OPEN

Fig 2: Checking MAP Signal Circuit For Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the PCM C2 harness connector.
3. Measure the resistance of the (K1) MAP Signal circuit from the MAP Sensor harness connector to the PCM C2 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 5
  No
  - Repair the open in the (K1) MAP Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .

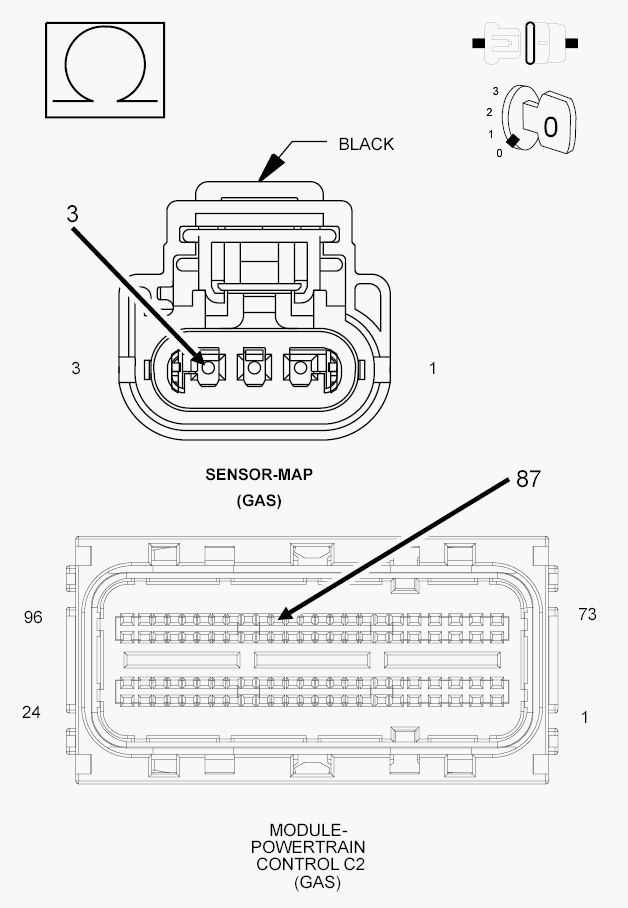

(K1) MAP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT

Fig 3: Checking MAP Signal Circuit For Short To Sensor Ground Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between the (K900) Sensor ground circuit and the (K1) MAP Signal circuit in the MAP Sensor harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short between the (K900) Sensor ground circuit and the (K1) MAP Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 6

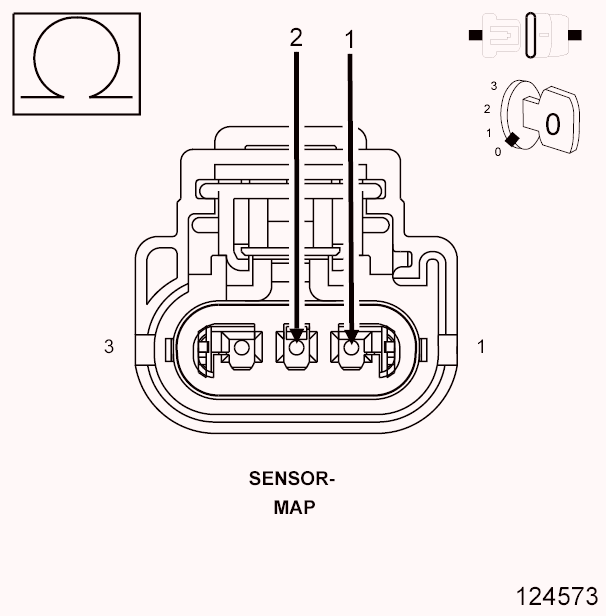

(K1) MAP SIGNAL CIRCUIT SHORTED TO GROUND

Fig 4: Checking MAP Signal Circuit For Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between ground and the (K1) MAP Signal circuit in the MAP Sensor harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short to ground in the (K1) MAP Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 10
(F856) 5-VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Fig 5: Checking 5-Volt Supply Circuit For Short To Voltage
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the PCM C2 harness connector.
3. Ignition on, engine not running.
4. Measure the voltage on the (F856) 5-Volt Supply circuit in the MAP Sensor harness connector.
  Is there any voltage present?

  Yes
  - Repair the short to voltage in the (F856) 5-Volt Supply circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 8
(F856) 5-VOLT SUPPLY CIRCUIT OPEN

Fig 6: Checking 5-Volt Supply Circuit For Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Measure the resistance of the (F856) 5-Volt Supply circuit from the MAP Sensor harness connector to the PCM C2 harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 9
  No
  - Repair the open in the (F856) 5-Volt Supply circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
(F856) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Fig 7: Checking MAP Sensor 5-Volt Supply Circuit For Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between ground and the (F856) 5-Volt Supply circuit in the MAP Sensor harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short to ground in the (F856) 5-Volt Supply circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 10
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the MAP Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the MAP Sensor and Powertrain Control Module connectors.
4. Perform any Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Replace and program the Powertrain Control Module in accordance with the Service Information. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
