P0016-Crankshaft/Camshaft Timing Misalignment - Bank 1 Sensor 1: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

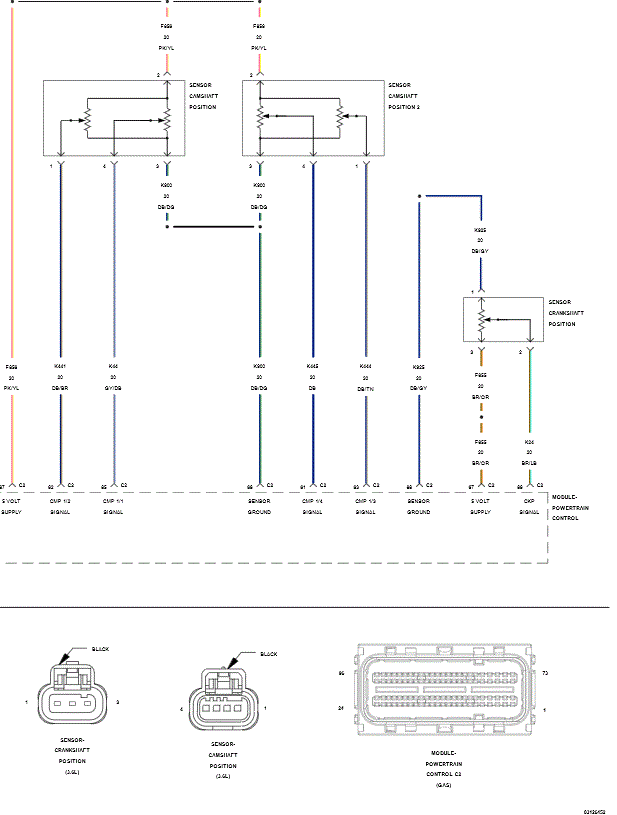

Fig 1: Crankshaft/Camshaft Position Sensor Circuit Schematic

Courtesy of CHRYSLER GROUP, LLC
