P0010-Bank 1 Camshaft 1 Position Actuator Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

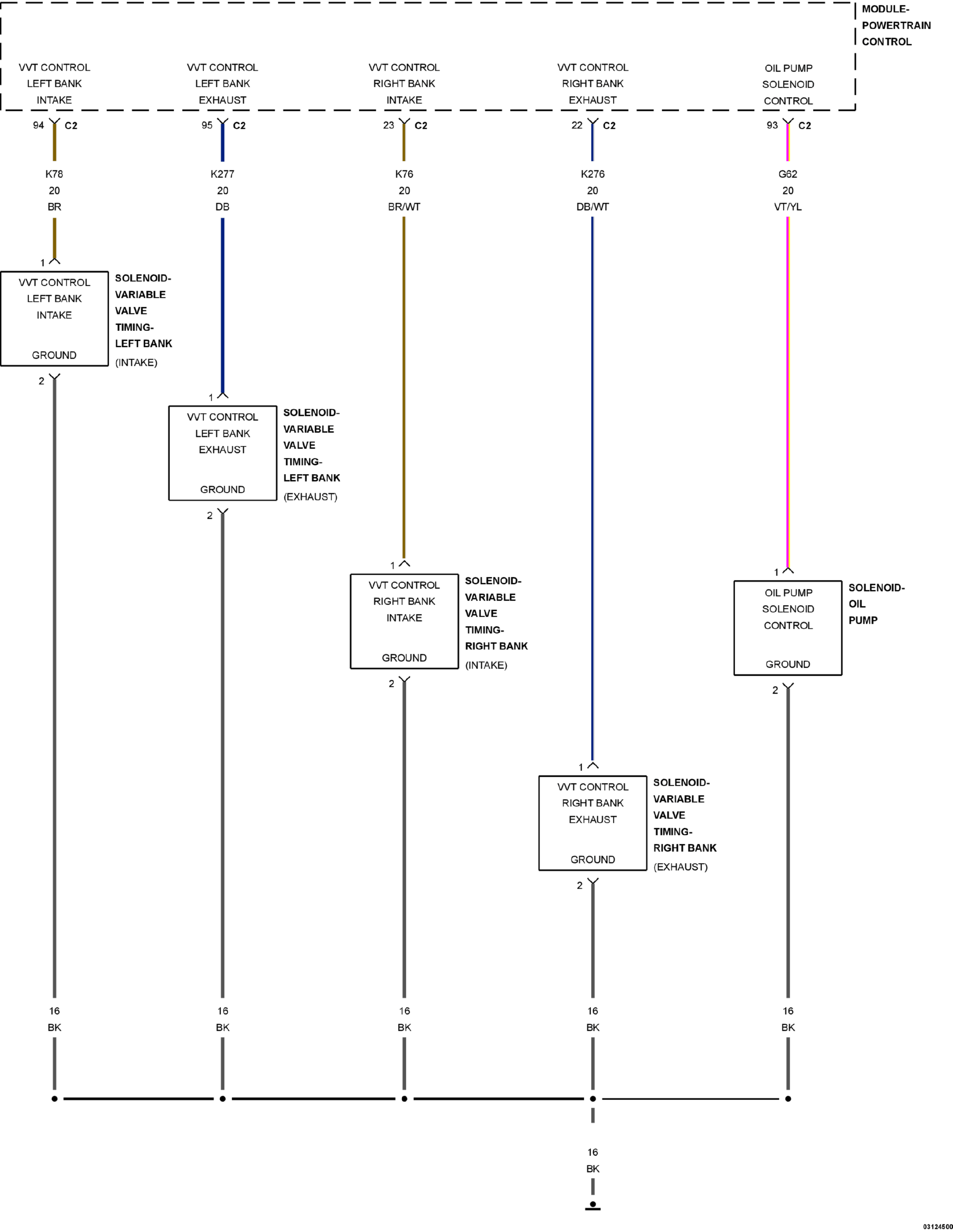

Fig 1: VVT Control Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
