Cover(S), Cylinder Head: Installation: Right

Fig 1: Magnetic Timing Wheels

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

The magnetic timing wheels (1) must not come in contact with magnets (pickup tools, trays, etc.) or any other strong magnetic field. This will destroy the timing wheels ability to correctly relay camshaft position to the camshaft position sensor.

Fig 2: Cylinder Head Cover Gasket & Spark Plug Tube Seals

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The LH cylinder head cover is shown in illustration, the RH cylinder head cover is similar.

Install the cylinder head cover gasket (1).
The spark plug tube seals (2) can be reused if not damaged.

Fig 3: Spark Plug Tube Seal & Installer
Courtesy of CHRYSLER GROUP, LLC
If required, install new spark plug tube seals (2) in the cylinder head cover:
- Lubricate the spark plug tube seal inner and outer diameters with clean engine oil.
- Place the spark plug tube seal (2) on the Cam Sensor/Spark Plug Tube Seal Installer (special tool #10256, Installer, Cam Installer, Cam Sensor/Spark Plug Tube Seal) (1).
- Push the seal into the cylinder head cover until the base of the seal is seated.
- Remove the tool.
Fig 4: Residual Sealant
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The LH cylinder head cover T-joint is shown in illustration, the RH cylinder head cover T-joint is similar.
Clean the timing engine timing cover, cylinder head and cylinder head cover mating surfaces with isopropyl alcohol in preparation for sealant application.
CAUTION:
Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.

CAUTION:
Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 20 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.
Apply a 2 to 3 mm wide bead of Mopar® Threebond Engine RTV Sealant (1) to the two engine timing cover to cylinder head T-joints as shown in illustration.

Fig 5: Cylinder Head Cover Bolts & Double Ended Studs Tightening Sequence - Right
Courtesy of CHRYSLER GROUP, LLC
Align the locator pins (1) to the cylinder head and install the cylinder head cover.
Tighten the cylinder head cover bolts and double ended studs in the sequence shown in illustration to 12 N.m (106 in. lbs.).

Fig 6: Electrical Connector, Ignition Coils & Ignition Coil Retaining Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The LH ignition coils are shown in illustration, the RH ignition coils are similar.
If removed, install the spark plugs. Refer to SPARK PLUG, INSTALLATION .
Install the ignition coils (2). Refer to COIL, IGNITION, INSTALLATION .

Fig 7: Variable Valve Timing Solenoids, Connectors & Bolts
Courtesy of CHRYSLER GROUP, LLC
Refer to the markings made at disassembly and install the variable valve timing solenoids (2 and 4) in their original locations

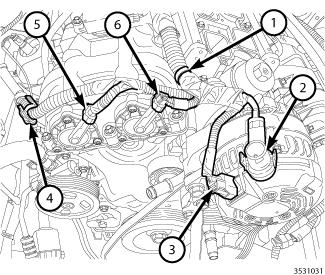

Fig 8: Generator Stud, Connector, Retainers & Right Exhaust And Right Intake Variable Valve Timing Solenoid Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Connect the right exhaust variable valve timing solenoid electrical connector (5).
Connect the right intake variable valve timing solenoid electrical connector (6).
Engage the wire harness retainers (1 and 4) to the right cylinder head cover.

Fig 9: CMP Sensor & Bolt
Courtesy of CHRYSLER GROUP, LLC

NOTE:
If both RH and LH CMP sensors where removed, install them into their original locations.
Install the camshaft position sensor. Refer to SENSOR, CAMSHAFT POSITION, 3.6L, INSTALLATION .

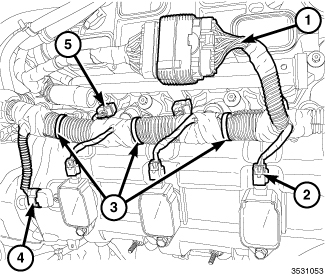

Fig 10: Engine Injection/Ignition Harness, Ignition Coil Electrical Connectors, Retainers, Camshaft Position (CMP) Sensor Connector & Fuel Injector Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Connect three ignition coil electrical connectors (2).
Connect the electrical connector (4) to the right Camshaft Position (CMP) sensor.
Engage three main wire harness retainers (3) to the right cylinder head cover.

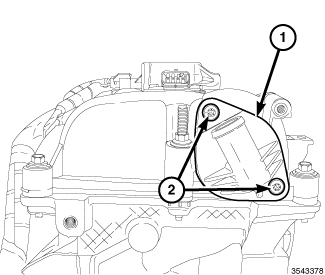

Fig 11: PCV Valve & Screws
Courtesy of CHRYSLER GROUP, LLC
Install the PCV valve (1). Refer to VALVE, POSITIVE CRANKCASE VENTILATION (PCV), REMOVAL .

Fig 12: Oil Level Indicator & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the oil level indicator (1) with the bolt (2) tightened to 12 N.m (106 in. lbs.).

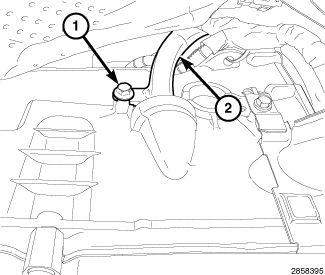

Fig 13: Upper Transmission-To-Engine Bolt & Transmission Oil Level Indicator Tube
Courtesy of CHRYSLER GROUP, LLC
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Install the transmission oil level indicator tube (2) with the upper transmission to engine bolt (1) tightened to 55 N.m (41 ft. lbs.).

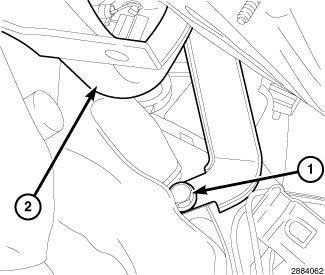

Fig 14: Transmission Fluid Level Indicator Tube & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the bolt (1) securing the transmission fluid level indicator tube (2) to the transmission housing and tighten to 12 N.m (106 in. lbs.).

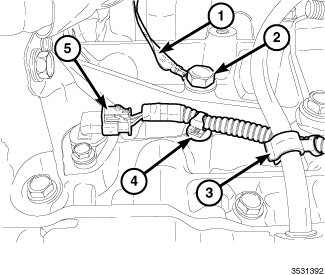

Fig 15: Ground Strap, Bolt, Retainers & Crankshaft Position (CKP) Sensor
Courtesy of CHRYSLER GROUP, LLC
Engage the main wire harness retainer (3) to the oil level indicator.

Fig 16: Intake Ports, Insulator & Alignment Posts
Courtesy of CHRYSLER GROUP, LLC
Lower the vehicle.
If removed, install the insulator (2) to the two alignment posts (3) on top of the LH cylinder head cover.

Fig 17: Upper Intake Manifold Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Install the upper intake manifold (1), support brackets and air cleaner body. Refer to MANIFOLD, INTAKE, INSTALLATION .
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).

NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
