Outlet, Power, 12 V: Removal: Removal

Disconnect and isolate the battery negative cable.

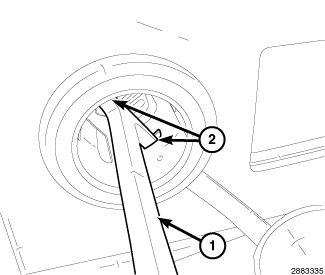

Fig 1: Inserting Power Outlet Remover
Courtesy of CHRYSLER GROUP, LLC
Look inside and note position of the retaining bosses (2).
Insert Remover, Power Outlet (special tool #10246, Remover, Power Outlet) (1) into the retaining bosses (2) of the power outlet.
Pull out the base through the mounting ring by gently rocking the tool.

Fig 2: Power Outlet & Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the harness (1) from the power outlet (2).
Set the base aside and remove the base mount ring.
