Four Door

Fig 1: Identifying Top To Rail Retainers

Courtesy of CHRYSLER GROUP, LLC

Separate the quarter windows hook and loop strips from the soft top and unzip the quarter windows.
Separate the quarter window sides (2) from the side rail retainers (1) and the door frame and remove the quarter window.
Unzip the rear window and release window retainer (2) from the rear tailgate retainer (1).

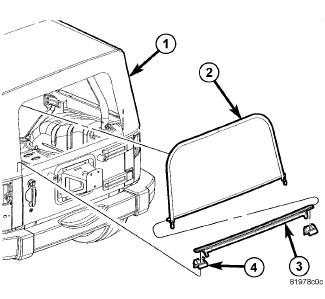

Fig 2: Rear Window
Courtesy of CHRYSLER GROUP, LLC
Unzip the rear window (2) and release window retainer from the rear tailgate retainer (3).

Fig 3: Identifying Windshield Frame Loop Latches
Courtesy of CHRYSLER GROUP, LLC
Release the front latches (1) from the windshield frame loops (2).

Fig 4: Identifying Top To Rail Retainers
Courtesy of CHRYSLER GROUP, LLC
Release the soft top retainers (2) from the upper side and lower rear rail retainers (1).

Fig 5: Identifying Pivot Bracket, Knuckles & Bolts
Courtesy of CHRYSLER GROUP, LLC
Fold the top into the down position.

Remove the pivot bracket bolts (1) from the pivot knuckles (3) and separate the knuckles from the pivot bracket (2).

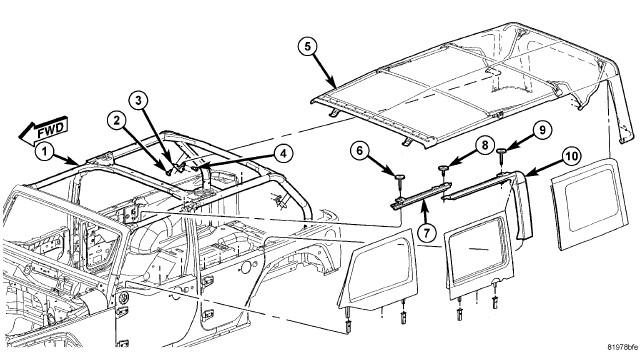

Fig 6: Identifying Soft Top Components (4 Door, 2 Door Similar)

Courtesy of CHRYSLER GROUP, LLC

1 - SPORT BAR ASSEMBLY

2 - PIVOT BRACKET BOLTS

3 - PIVOT BRACKETS

4 - PIVOT KNUCKLE BOLTS 14 N.m (10.5 ft. lbs.)

5 - FOUR DOOR SOFT TOP

6 - DOOR RAIL THUMB SCREW

7 - DOOR RAIL RETAINER

8 - DOOR RAIL THUMB SCREW

9 - REAR DOOR RAIL THUMB SCREW

10 - REAR DOOR RAIL RETAINER
