Right Hand Freedom Panel

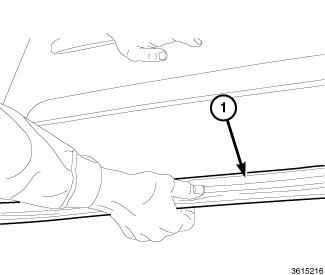

Fig 1: Seal

Courtesy of CHRYSLER GROUP, LLC

Remove seal (1) on right side panel.

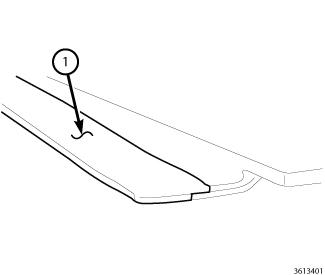

Fig 2: Tape Residue & Butyl Residue
Courtesy of CHRYSLER GROUP, LLC

NOTE:
A rubber wheel bit can be used to aid in the removal of tape and butyl residue
Remove tape residue (2) and butyl residue (1) from panel.

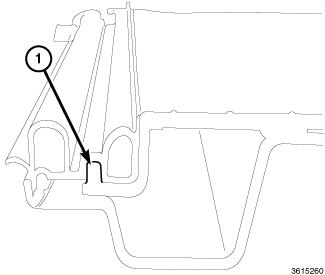

Fig 3: Seal Surface
Courtesy of CHRYSLER GROUP, LLC
Clean seal surface (1) with general purpose adhesive cleaner and allow to dry completely.
Wipe seal surface (1) with alcohol and allow to dry completely.

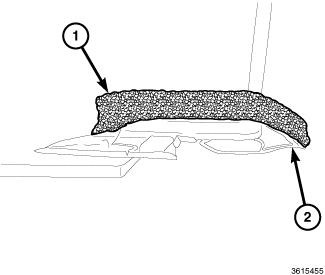

Fig 4: Right Hand Freedom Panel & Covered Surface
Courtesy of CHRYSLER GROUP, LLC
Place right hand freedom panel (1) upside down on a covered surface (2) to prevent scratching.

Fig 5: 20mm & 15mm
Courtesy of CHRYSLER GROUP, LLC

1 = 20 mm

2 = 15 mm
Apply 4 mm diameter butyl to Rear Notch, as shown.
NOTE:
Follow groove between panels and push butyl firmly in place

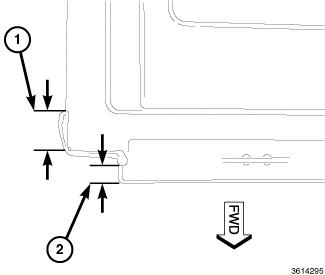

Fig 6: 20mm & 15mm
Courtesy of CHRYSLER GROUP, LLC

1 = 20 mm

2 = 15 mm
Apply 4 mm diameter Butyl to Front Notch, as shown.
NOTE:
Follow groove between panels and push butyl firmly in place

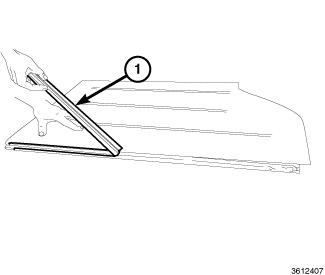

Fig 7: Right Hand Freedom Panel & Covered Surface
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Keep freedom panel upside down for the initial installation of the seal

NOTE:
Secure the end molds first, then finish with the middle of the seal
Remove tape liner from the new seal.

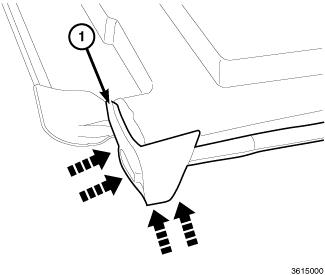

Fig 8: Rear Mold
Courtesy of CHRYSLER GROUP, LLC
Align REAR edge of NEW seal (1) to Right Freedom Panel Notch.
Compress butyl by installing seal in direction of arrows.
NOTE:
No gap between installed seal and outer edge of freedom panels

Fig 9: New seal Right Freedom Panel Notch
Courtesy of CHRYSLER GROUP, LLC
Align FRONT edge of New seal Right Freedom Panel Notch.
Compress butyl by installing seal in direction of arrows.
NOTE:
No gap between installed seal and outer edge of freedom panels

Fig 10: Seal Installation
Courtesy of CHRYSLER GROUP, LLC
Flip panel back over to complete the seal installation.
NOTE:
A small roller or firm finger pressure should be used to be certain the seal tape is adhered from front to rear, THIS STEP IS CRITICAL
Locate seal cross car against the middle rib in the freedom panel and pressurize starting at the ends and working toward the center.

Fig 11: Show Locator Rib
Courtesy of CHRYSLER GROUP, LLC

NOTE:
This figure is for reference only. Panel is cross cut to show locator rib (1) in the panel

Fig 12: Front of panel
Courtesy of CHRYSLER GROUP, LLC
On the front of the panel install GREY 30 X 75 mm Foam (1), from the Foam Kit. Locate the foam along trim lines of flame tip (2).
NOTE:
Make sure foam covers butyl completely

Fig 13: Rear of panel
Courtesy of CHRYSLER GROUP, LLC
On the rear of the panel, install BLACK 30 X 75 mm foam (1), from the Foam Kit. Locate the foam along trim lines of flame tip (2).

NOTE:

Make sure foam covers butyl completely
