Test Results-Starter System

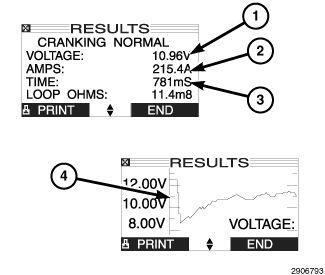

Fig 1: Test Results-Starter System Example
GC0143814Courtesy of CHRYSLER GROUP, LLC
  1. Average cranking voltage
  2. Average cranking current if amp clamp is used
  3. Cranking time in seconds
  4. Y axis = System performance: cranking voltage
