Test Results-Charging System

A REPLACE BATTERY or BAD CELL-REPLACE decision gives you the option of generating a warranty code. For Chrysler vehicles model year 2011 or later, enter that warranty code into your wiTECH in the Midtronics warranty code validation routine.

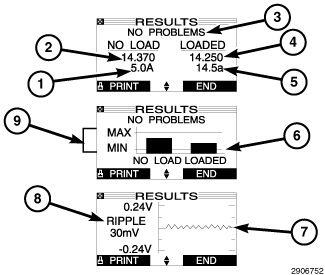

Fig 1: Battery Tester Test Results Screen - Example

Courtesy of CHRYSLER GROUP, LLC

1. Loads-off current at rev if amp clamp is used
2. Loads-off DC voltage at rev
3. Decision
4. Loads-on DC voltage at rev
5. Loads-on current at rev if amp clamp is used
6. Bar graph of DC voltage within normal range (loads on and off)
7. Graph of diode waveform
8. Peak-to-peak AC voltage
9. Normal DC voltage range
