Battery Decisions

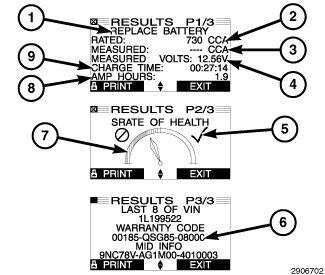

Fig 1: Battery Test Screen - Example
GC0143812Courtesy of CHRYSLER GROUP, LLC
  1. Battery Decisions
  2. Select Rating
  3. Measured capacity
  4. Measured voltage
  5. Good Range
    NOTE:

    The warranty code screen will only be displayed for REPLACE BATTERY and BAD CELL-REPLACE decisions.

  6. Enter this number into wiTech
  7. Replace range
  8. Replaced AMP Hours
  9. Charging Time
