Gr8 Battery Tester

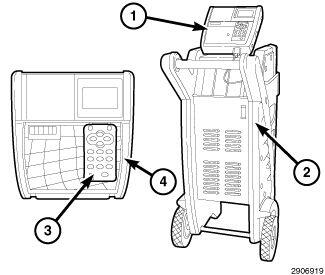

Fig 1: Identifying GR8 Battery Tester

Courtesy of CHRYSLER GROUP, LLC

Control module: Backlit graphical display and keypad for data entry.
ON/OFF switch: ON/OFF switch Turns power on and off to the GR8.
STATUS light: Lights in conjunction with beeping alarm to indicate transitions and warnings.
Data card slot: For future upgrades via a data card. The slot contains a plastic filler card for protection.
