Case Assembly, Differential: Removal: Removal

Fig 1: Differential Cover

Courtesy of CHRYSLER GROUP, LLC

Remove differential fill plug (2).
Remove differential cover (1) and drain fluid.
Remove axle shafts.

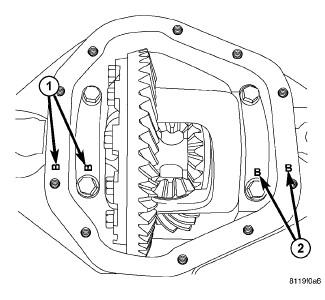

Fig 2: Location Marks
Courtesy of CHRYSLER GROUP, LLC
Note reference letters stamped (1, 2) on the bearing caps and housing machined sealing surface.

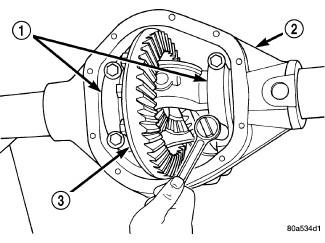

Fig 3: Bearing Cap Bolts
Courtesy of CHRYSLER GROUP, LLC
Loosen differential bearing cap (1) bolts.

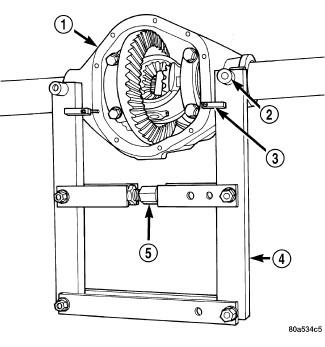

Fig 4: Install Axle Housing Spreader
Courtesy of CHRYSLER GROUP, LLC
Position Spreader (special tool #W-129-B, Spreader, Differential) (4) with Adapter Kit (special tool #6987B, Adapter Kit, Axle Spreader) (2) on differential locating holes. Install hold-down clamps (3) and tighten the turnbuckle (5) finger-tight.

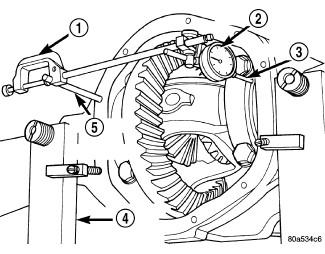

Fig 5: Install Dial Indicator
Courtesy of CHRYSLER GROUP, LLC
Install a Pin (special tool #C-3288-B, Set, Alignment Pins) (5) at the left side of the differential housing. Attach Dial Indicator (special tool #C-3339A, Set, Dial Indicator) (2) to pin. Load indicator plunger against the opposite side of the housing and zero the indicator.

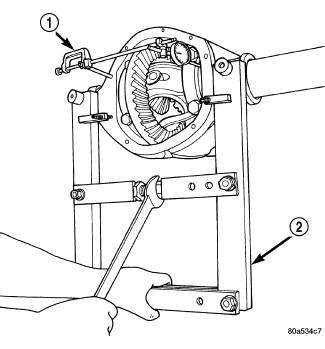

Fig 6: Spread Axle Housing
Courtesy of CHRYSLER GROUP, LLC
Spread housing while measuring the distance with the dial indicator (1).
CAUTION:
Never spread housing over 0.50 mm (0.020 in). Failure to follow these instructions will damage the housing.

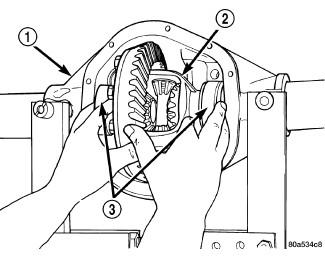

Fig 7: Differential Case Removal
Courtesy of CHRYSLER GROUP, LLC
Remove dial indicator.
Holding differential case (2) in position, remove differential bearing caps.
Remove differential case (2) from housing (1) and tag differential bearing cups (3) and shims location.
Remove spreader from housing.
Clean the housing cavity with flushing oil, light engine oil or lint free cloth.

NOTE:

Do not use water, steam, kerosene or gasoline for cleaning.
