Adapter, Disc Brake Caliper: Installation: Front

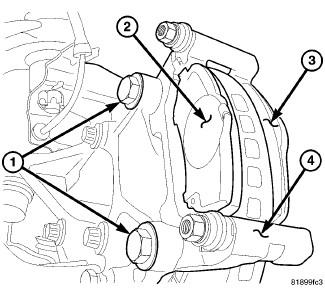

Fig 1: Caliper Adapter Mounting Bolts, Inboard/Outboard Brake Pads & Caliper Adapter

Courtesy of CHRYSLER GROUP, LLC

1. Install the caliper adapter mounting bolts (1). Tighten the mounting bolts to 163 N.m (120 ft.lbs).
2. Install the inboard (2) and outboard pads (3). Refer to PADS AND/OR SHOES, BRAKE, INSTALLATION .
   Fig 2: Identifying Disc Brake Caliper & Components

   Courtesy of CHRYSLER GROUP, LLC
3. Install the caliper (4) to the adapter (3). Refer to CALIPER, DISC BRAKE, INSTALLATION .
4. Install the tire and wheel assembly. Refer to WHEELS, STANDARD PROCEDURE .
