Bracket Locations And Modifications

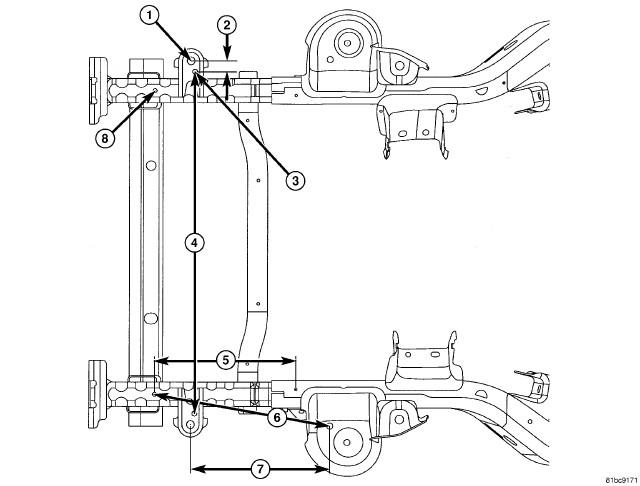

Fig 1: Identifying Bracket Holes

GC0131099

Courtesy of CHRYSLER GROUP, LLC

1 - 20 mm HOLE (13/16 inch)

2 - 27.7 mm (1.09 inch)

3 - 15 mm HOLE (5/8 inch)

4 - 869.2 mm (34.2 inch)

5 - 359.6 mm (14.2 inch)

6 - 453.8 mm (17.9 inch)

7 - 354.8 mm (14 inch)

8 - 12.5 mm HOLE (1/2 inch)

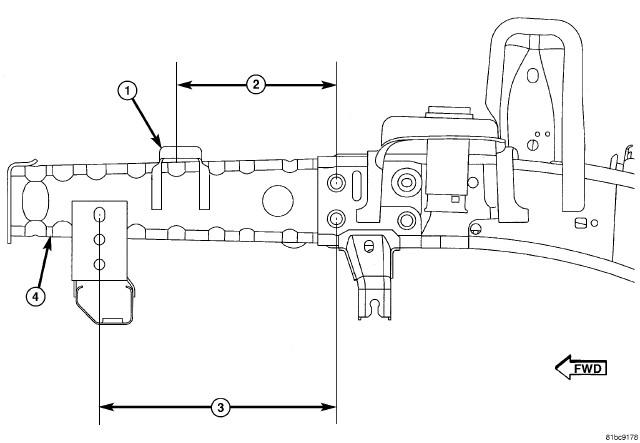

Fig 2: Identifying Bracket Locations

GC0131100

Courtesy of CHRYSLER GROUP, LLC

1 - FESM BRACKET

2 - 239.6 mm (9.43 inch)

3 - 335.1 mm (13.2 inch)

4 - FRAME RAIL TIP
