B143B-Microphone 1 Circuit Low: Notes

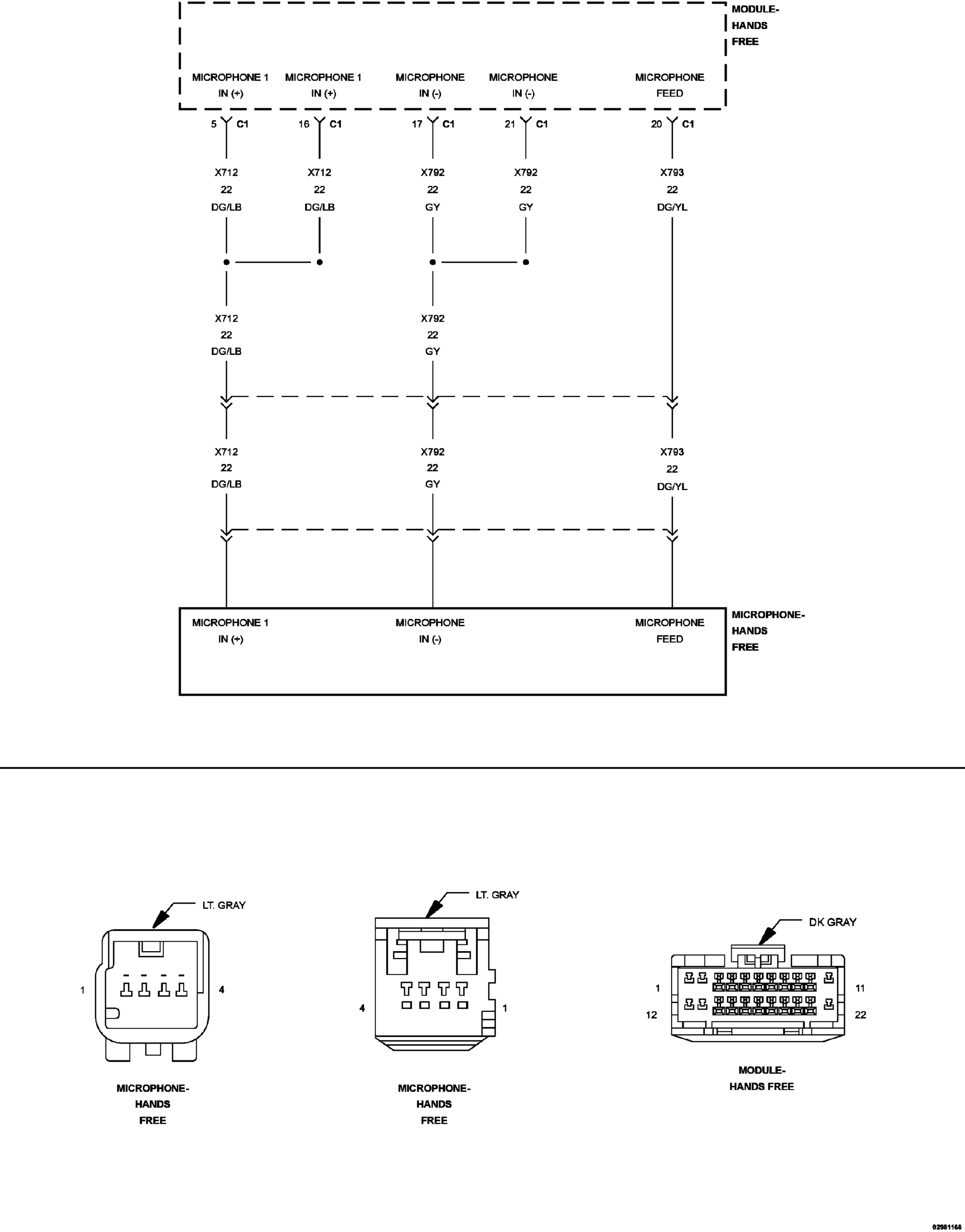

Fig 1: Microphone 1 Circuit Wiring Diagram

GC0149265

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
