Sound Bar

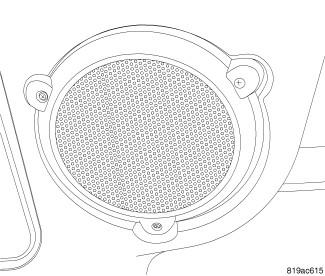

Fig 1: View Of Mounting Fasteners & Speaker Cover Grille
GC0130741Courtesy of CHRYSLER GROUP, LLC
  1. Connect the electrical connector.
  2. Install the speaker.
  3. Install the mounting fasteners.
  4. Connect the battery negative cable.
