B1403-Front Left Audio Speaker Output Circuit Open: Notes

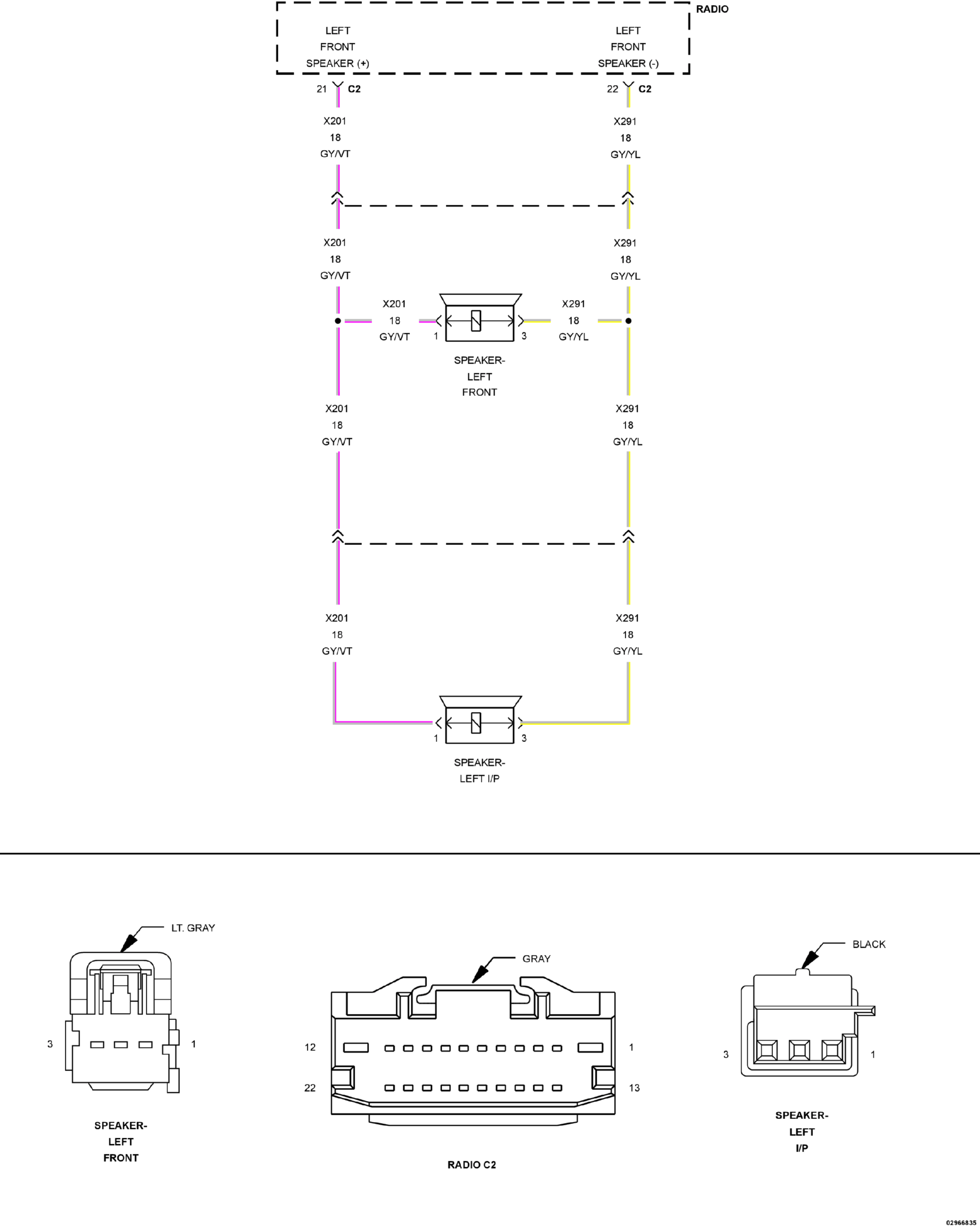

Fig 1: Front Left Audio Speaker Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
