No Response From WCM (Wireless Control Module): Notes

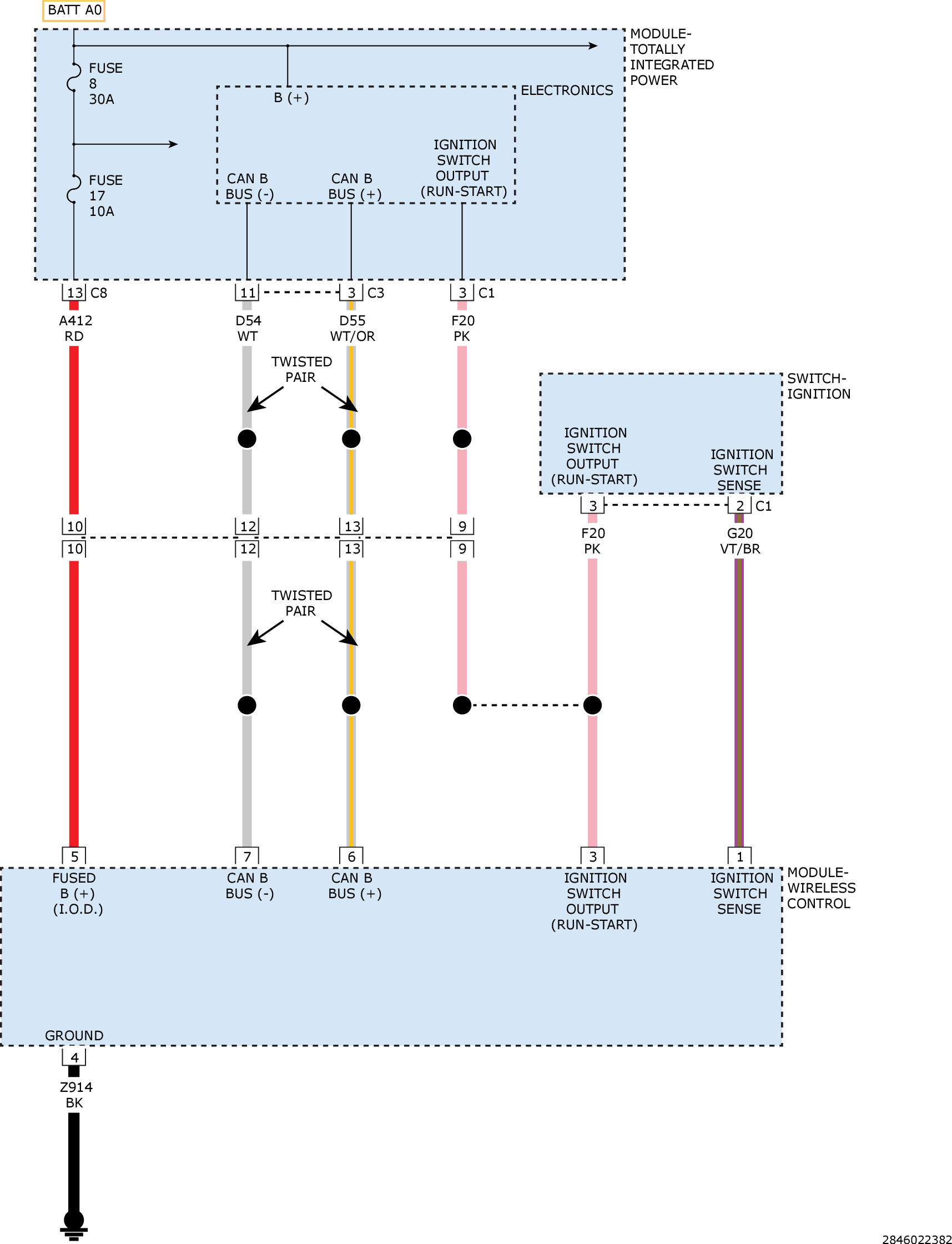

Fig 1: WCM (Wireless Control Module) Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

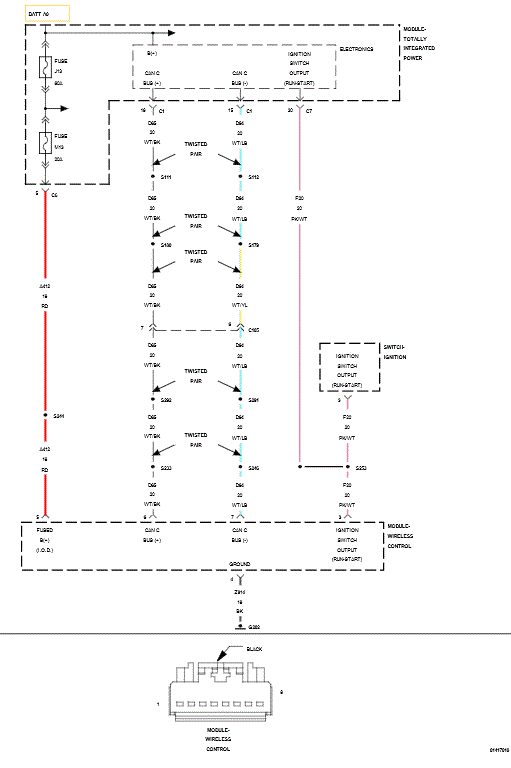

Fig 2: Wireless Control Module - Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
