No Response From Pcm (Powertrain Control Module) - Gas: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

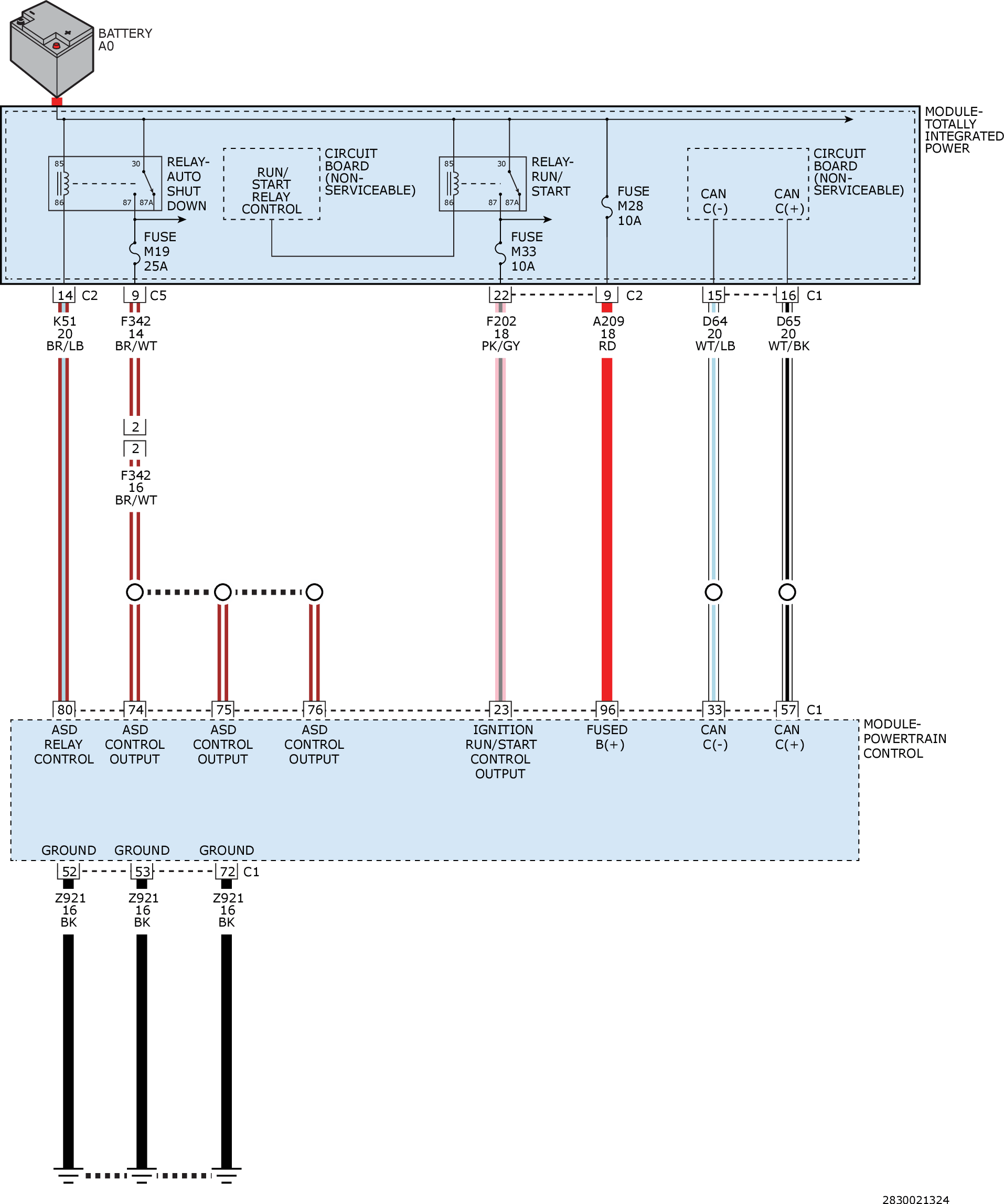

Fig 1: Auto Shutdown Relay Control Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
