No Response From Pcm (Powertrain Control Module) (Diesel): Notes

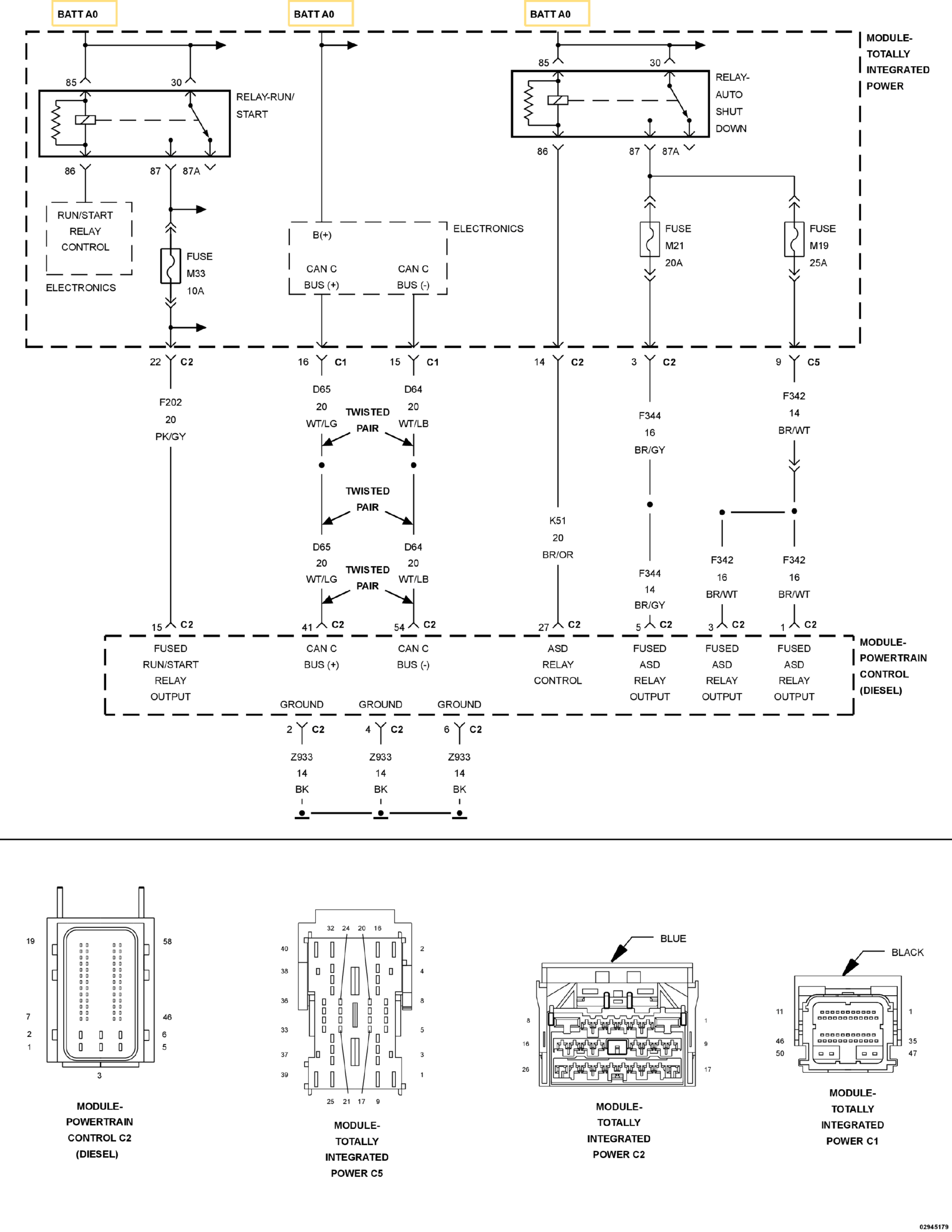

Fig 1: PCM (Powertrain Control Module) Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
