No Response From Orc (Occupant Restraint Controller): Notes

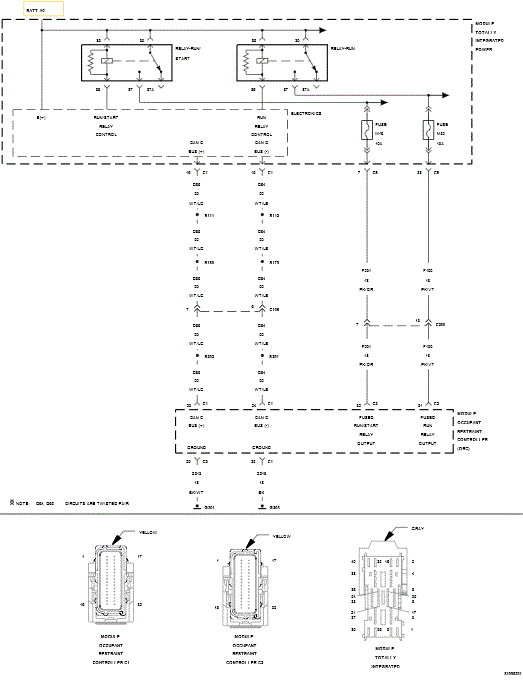

Fig 1: ORC (Occupant Restraint Controller) Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
