No Response From HVAC (A/C Heater Control Module): Notes

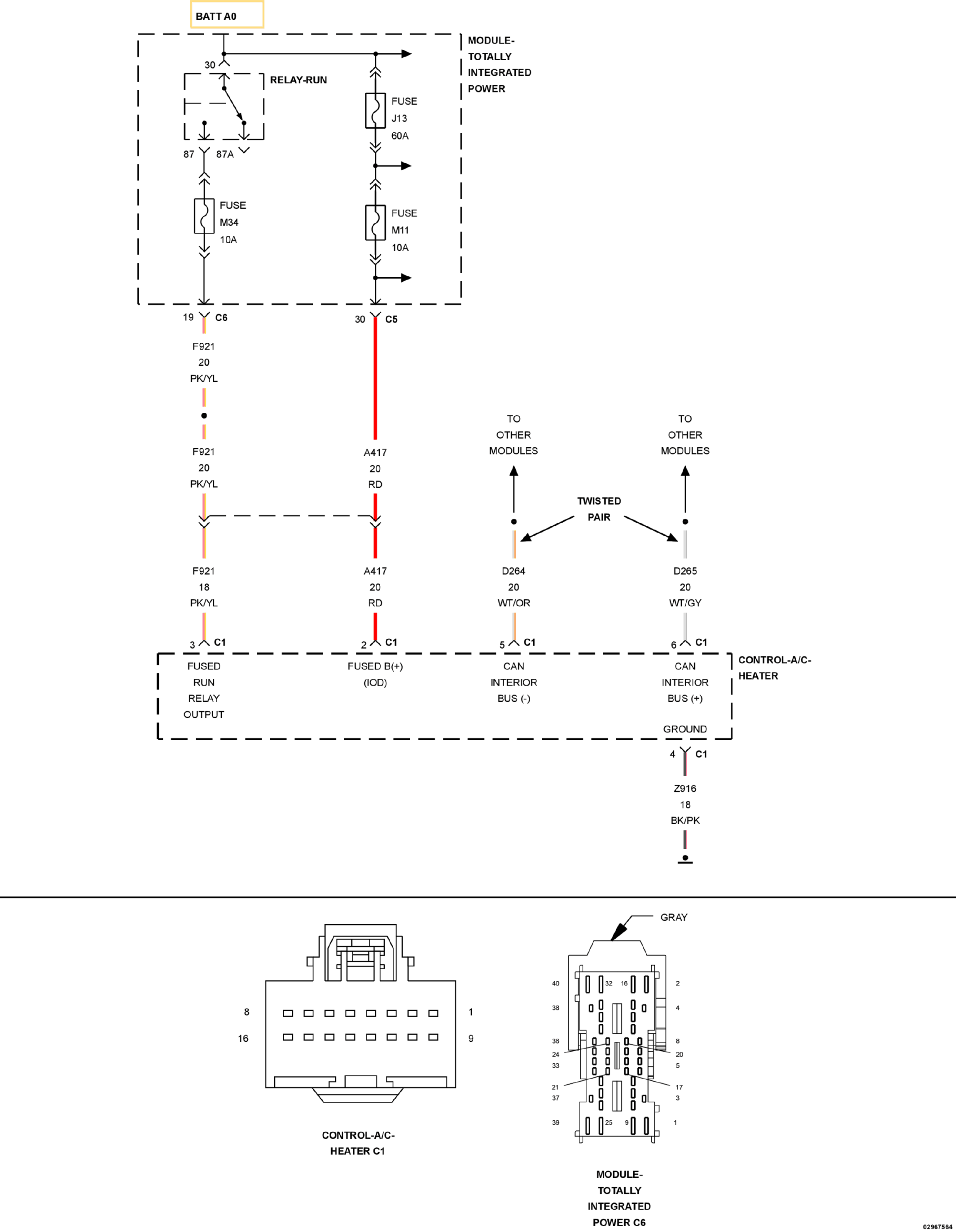

Fig 1: HVAC Control Module Power Supply Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
