No Response From Abs (Antilock Brake Module): Notes

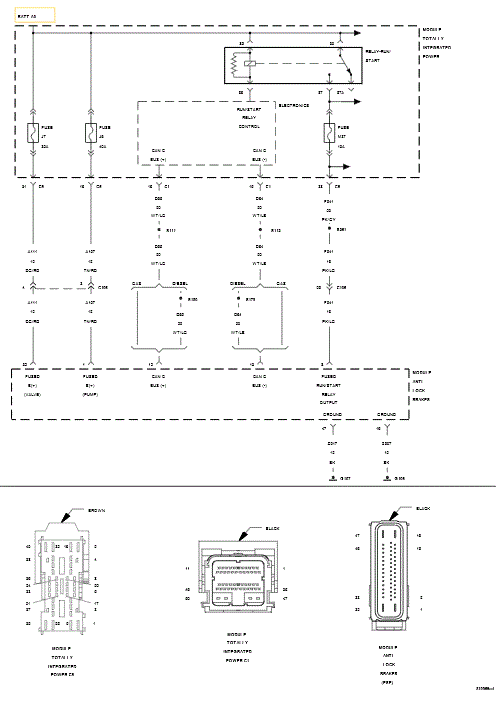

Fig 1: ABS (Antilock Brake Module) Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
