U0114-Lost Communication With Final Drive Control Module (FDCM) (ASBS): Notes

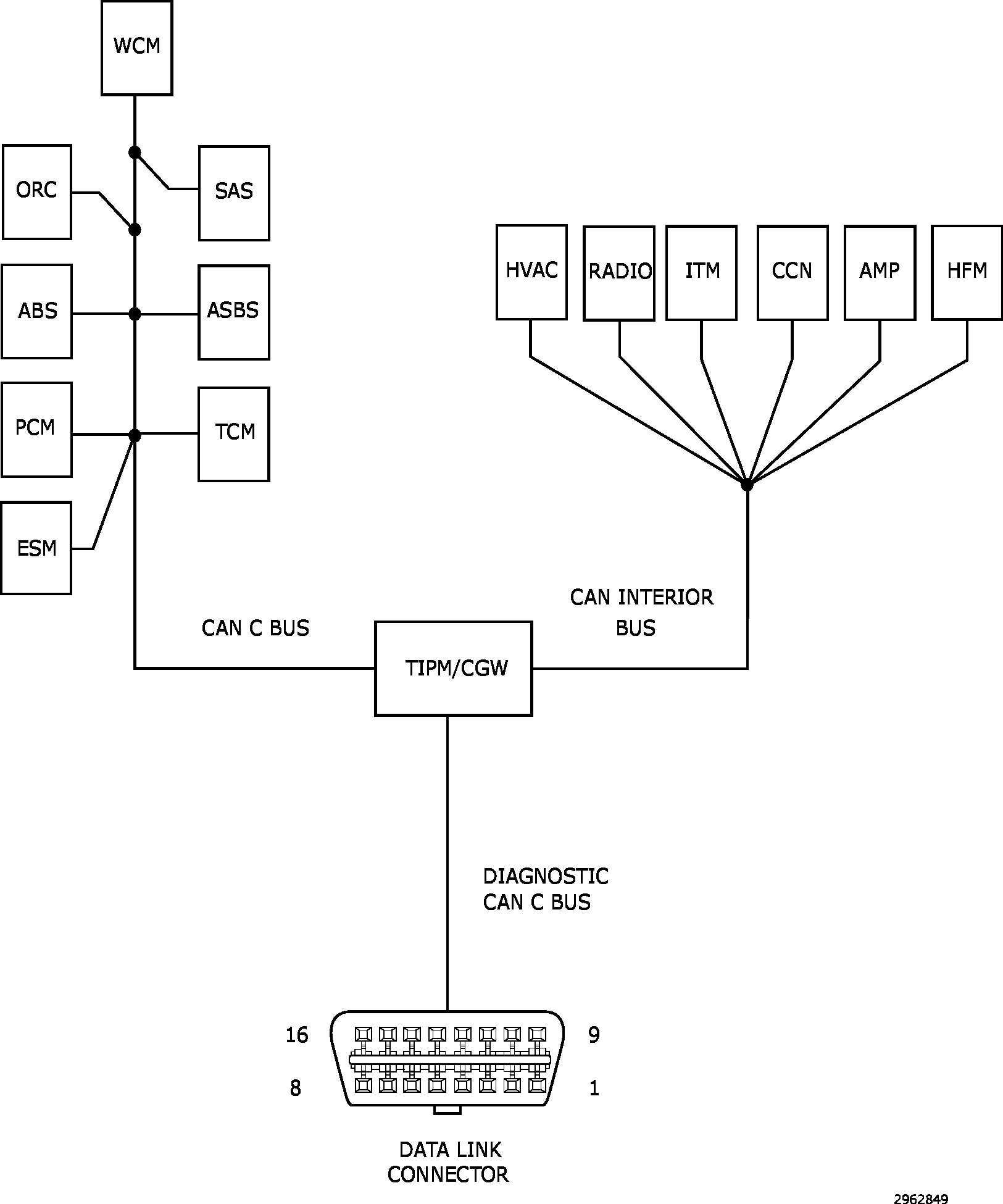

Fig 1: CAN C Bus Circuit Module Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
