P0692-Cooling Fan 1 Control Circuit High - 2.8L: Notes

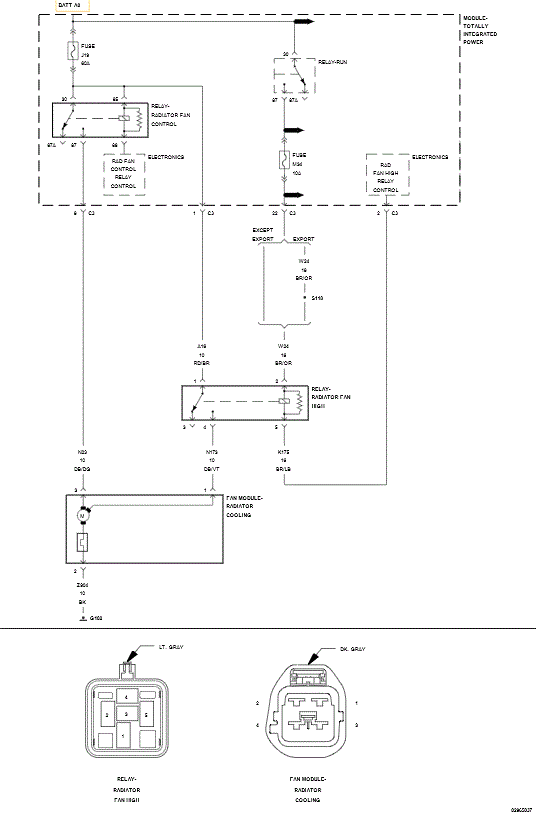

Fig 1: Cooling Fan Control Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
