P0691-Cooling Fan 1 Control Circuit Low - 3.6L: Notes

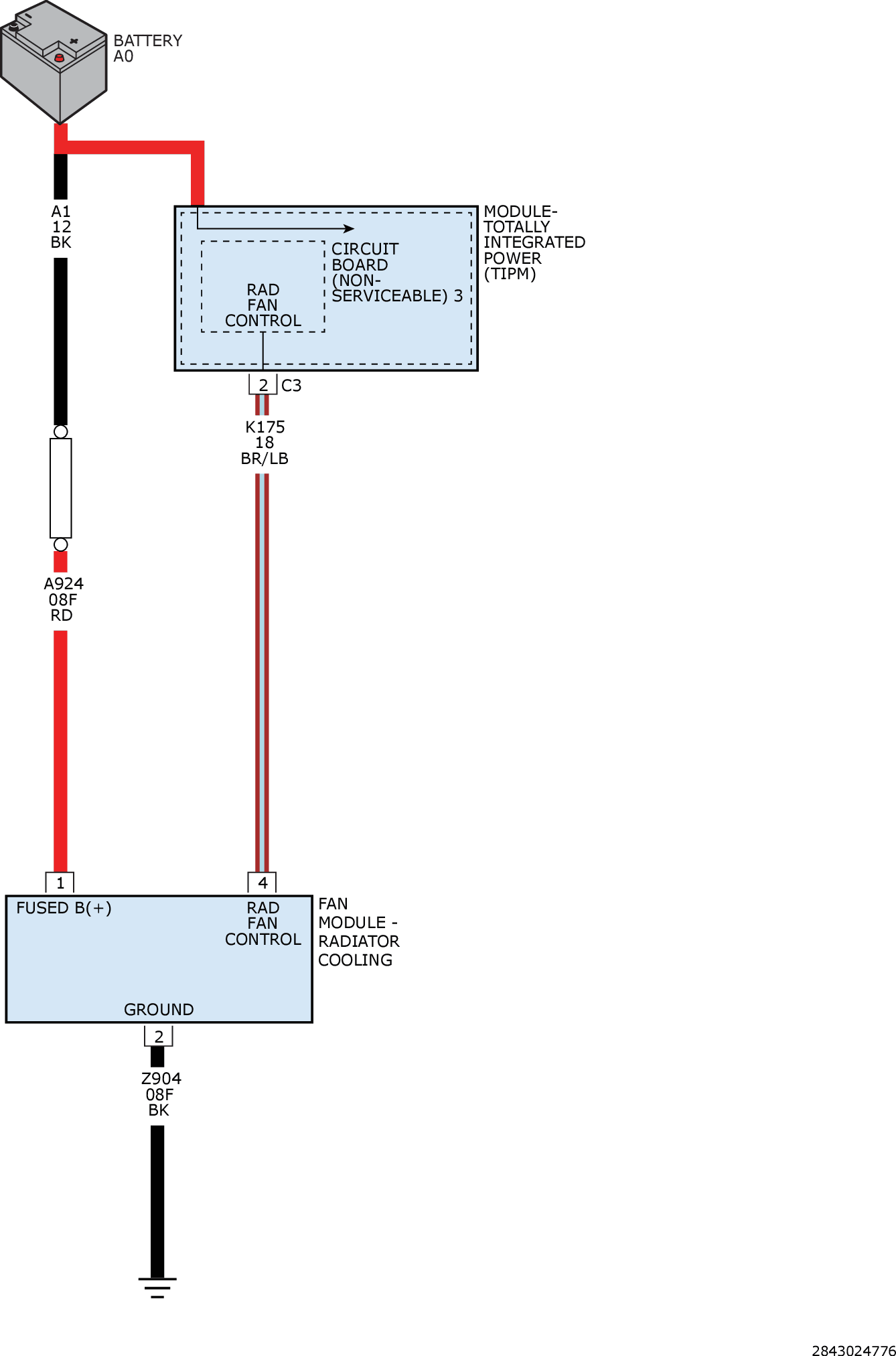

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
NOTE:
The Low Speed Cooling Fan Relay is not used to control any components and has no external function. The TIPM connects to the Low Speed Cooling Fan Relay through an internal connection and may set a DTC if the Low Speed Cooling Fan Relay is removed or damaged.
