B2101-Ignition Run/Start Input Circuit Low: Notes

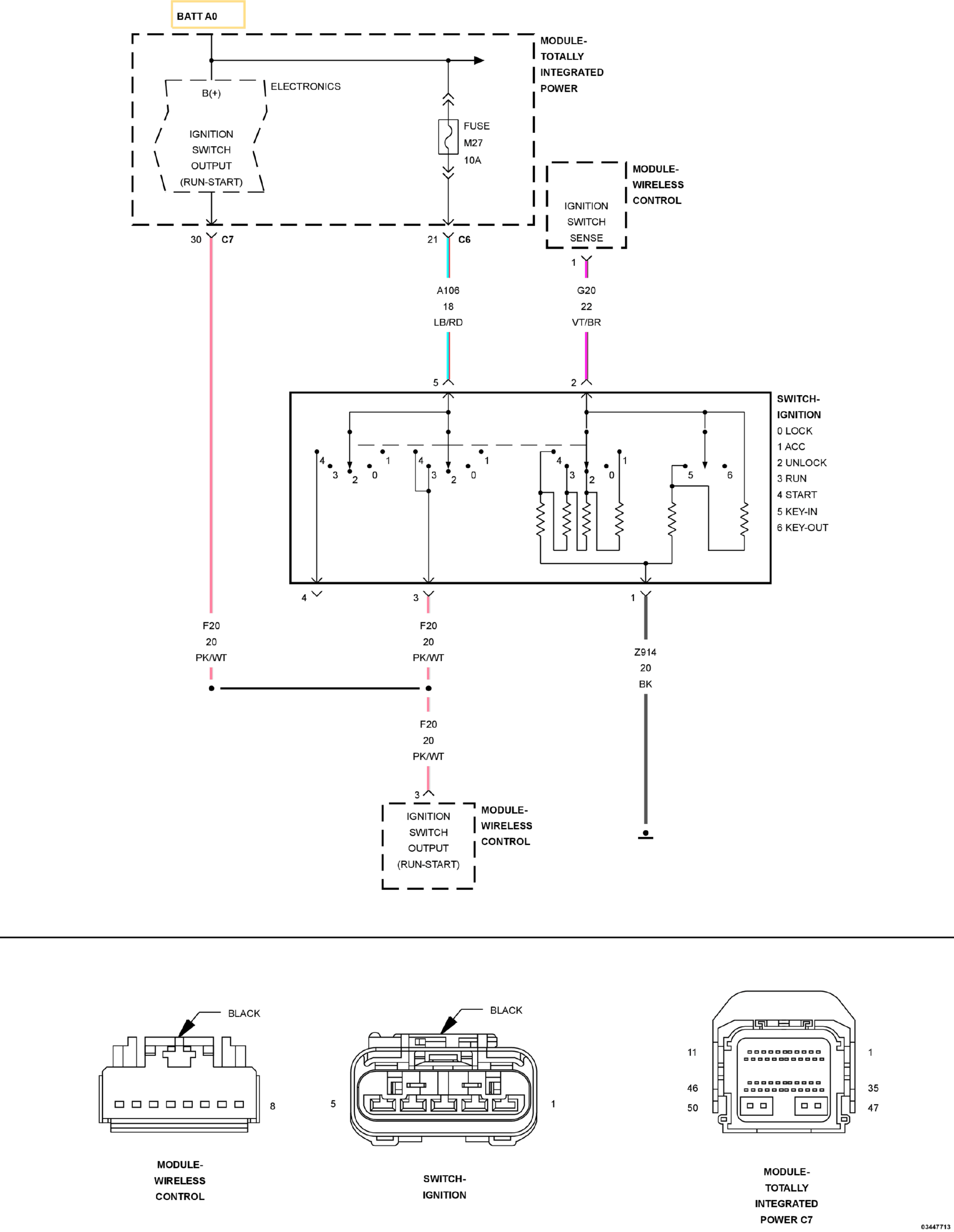

Fig 1: Ignition Run/Start Input Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
