B1663-Rear Fog Lamp Control Circuit Low: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

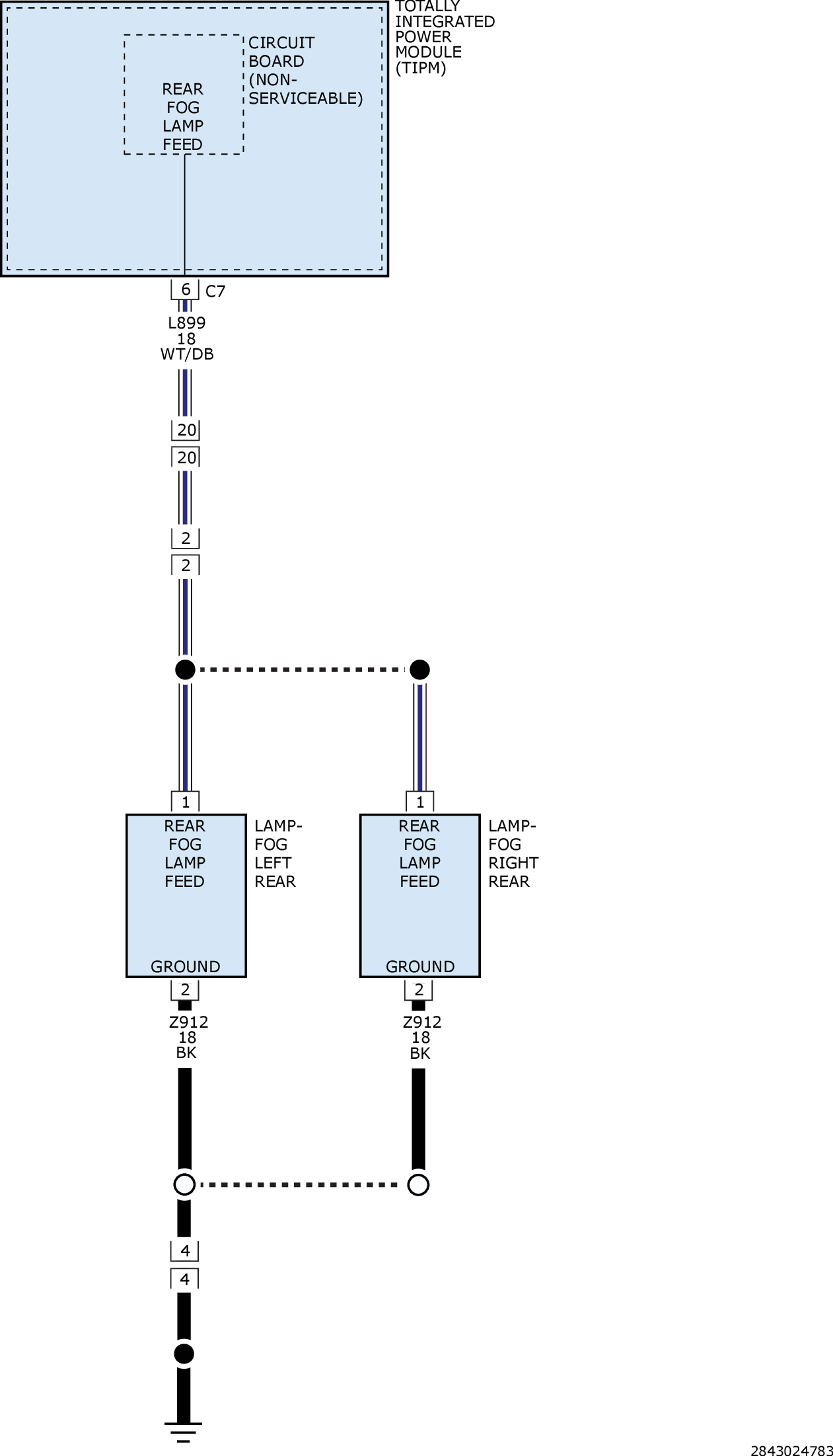

Fig 1: Rear Fog Lamp Control Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
