Solenoid-Camshaft 2/2 Position (D2485A)

Harness-Family: Powertrain

Color: Black

Gender: MALE

Part Number: F495100

Part Description: Not Available

Connector No: D2485A

Option: ~~

Repair Kit Part Number: 68149290AA

Cavity Count: 2

Fig 1: Solenoid-Camshaft 2/2 Position Connector End View

Courtesy of CHRYSLER

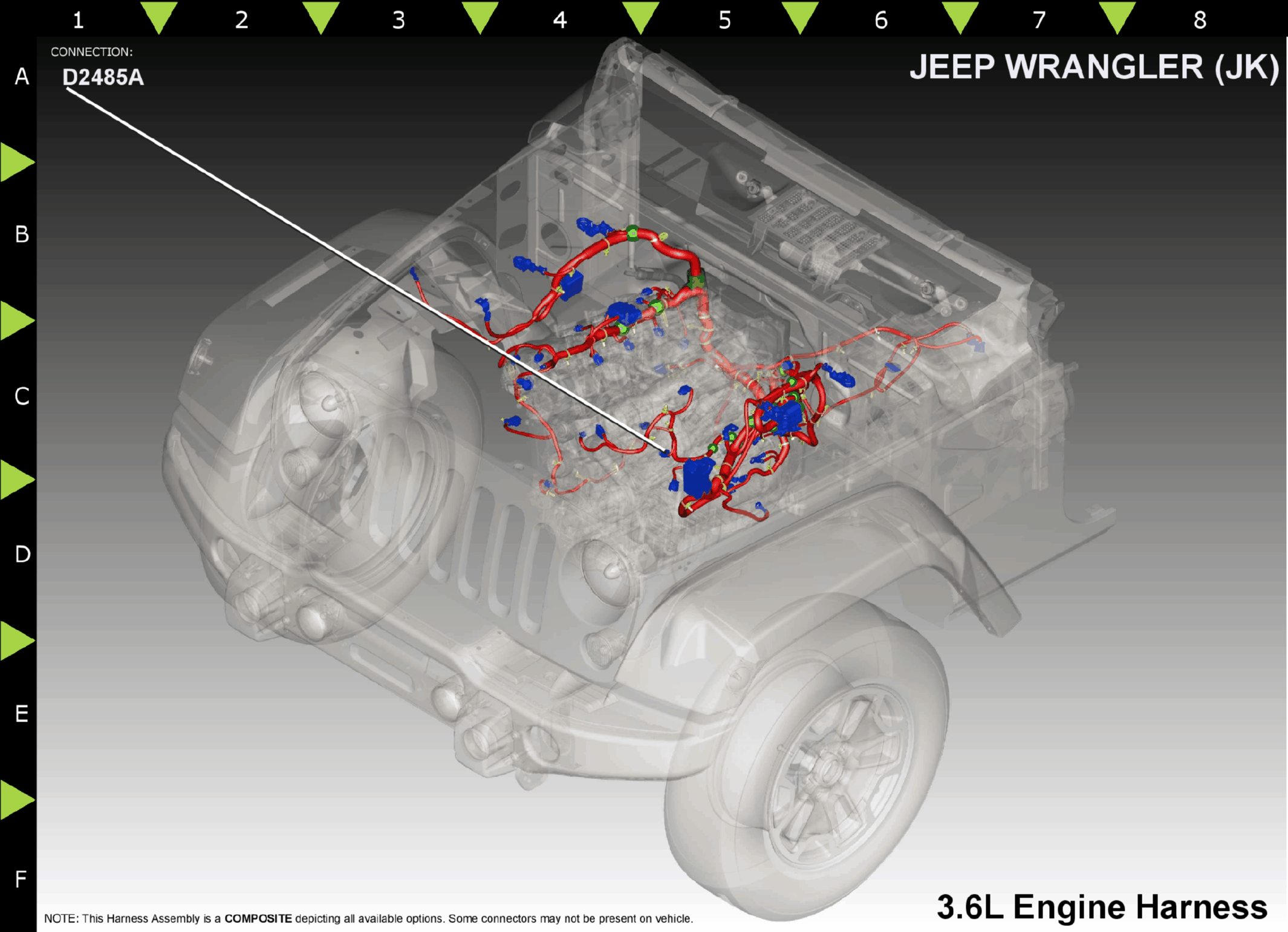

Fig 2: Solenoid-Camshaft 2/2 Position Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K277

DB/WT

VVT EXHAUST CONTROL 2

N/A

Z902

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
