Relay-Cabin Heater 3 (D3079A)

Harness-Family: Dash

Color: LT. GRAY

Gender: FEMALE

Part Number: 12065686

Part Description: 5-WAY RELAY INSULATOR

Connector No: D3079A

Option: ~~

Repair Kit Part Number: 68142156AA

Cavity Count: 5

Fig 1: Relay-Cabin Heater 3 Connector End View

GCWD1025463

Courtesy of CHRYSLER

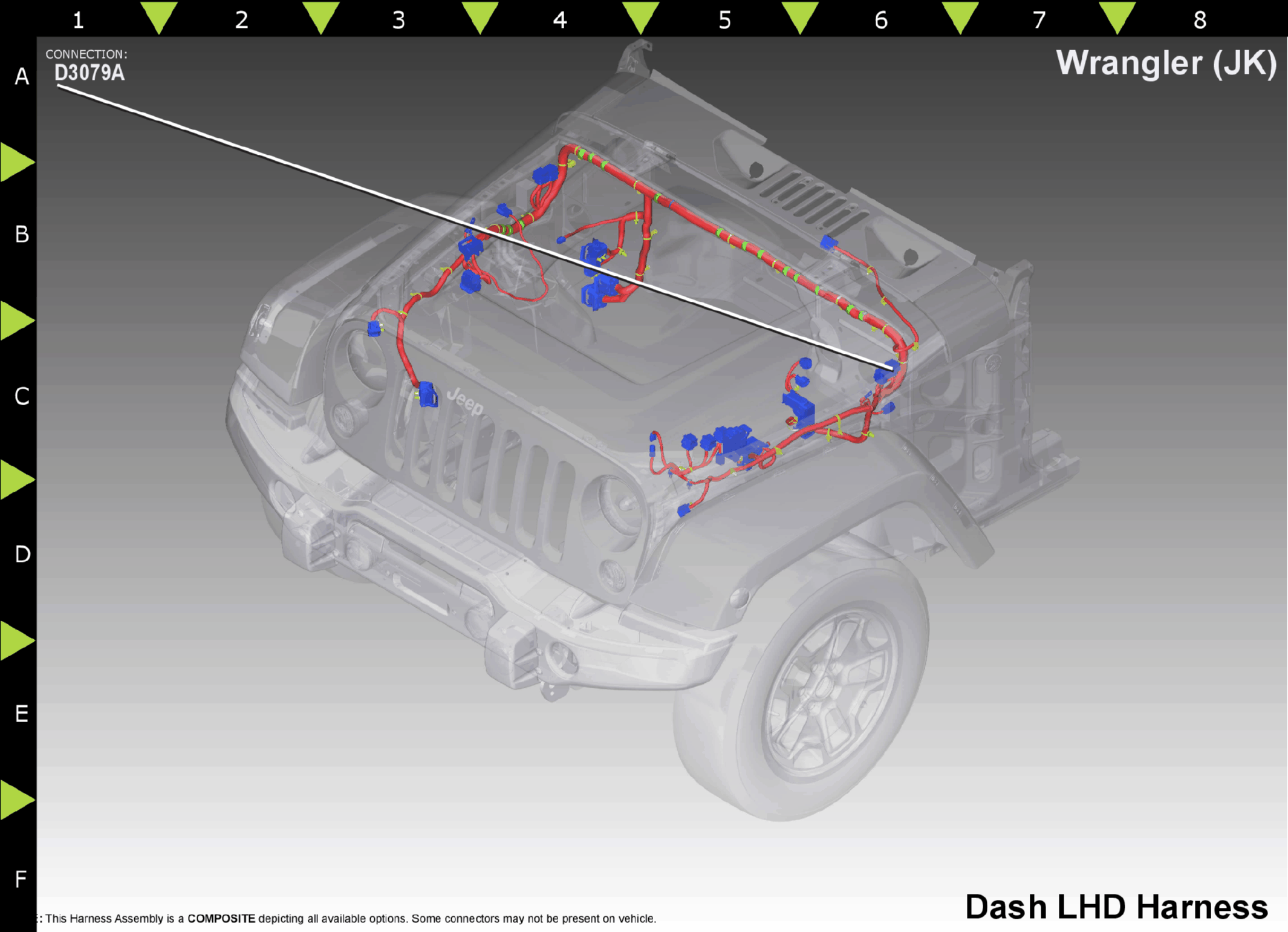

Fig 2: Relay-Cabin Heater 3 Component Location

GCWD1052250

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

30

A282

RD/OR

10

FUSED B(+)

N/A

85

W24

BR/OR

20

FUSED RUN RELAY OUTPUT

N/A

86

K363

OR/BR

20

PTC 3 RELAY CONTROL

N/A

87

A288

RD/LB

10

CABIN HEATER RELAY 3 OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
