Motor-Dc To Dc Converter (D2719A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 0-1564760-1

Part Description: Not Available

Connector No: D2719A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 10

Fig 1: Motor-DC To DC Converter Connector End View

Courtesy of CHRYSLER

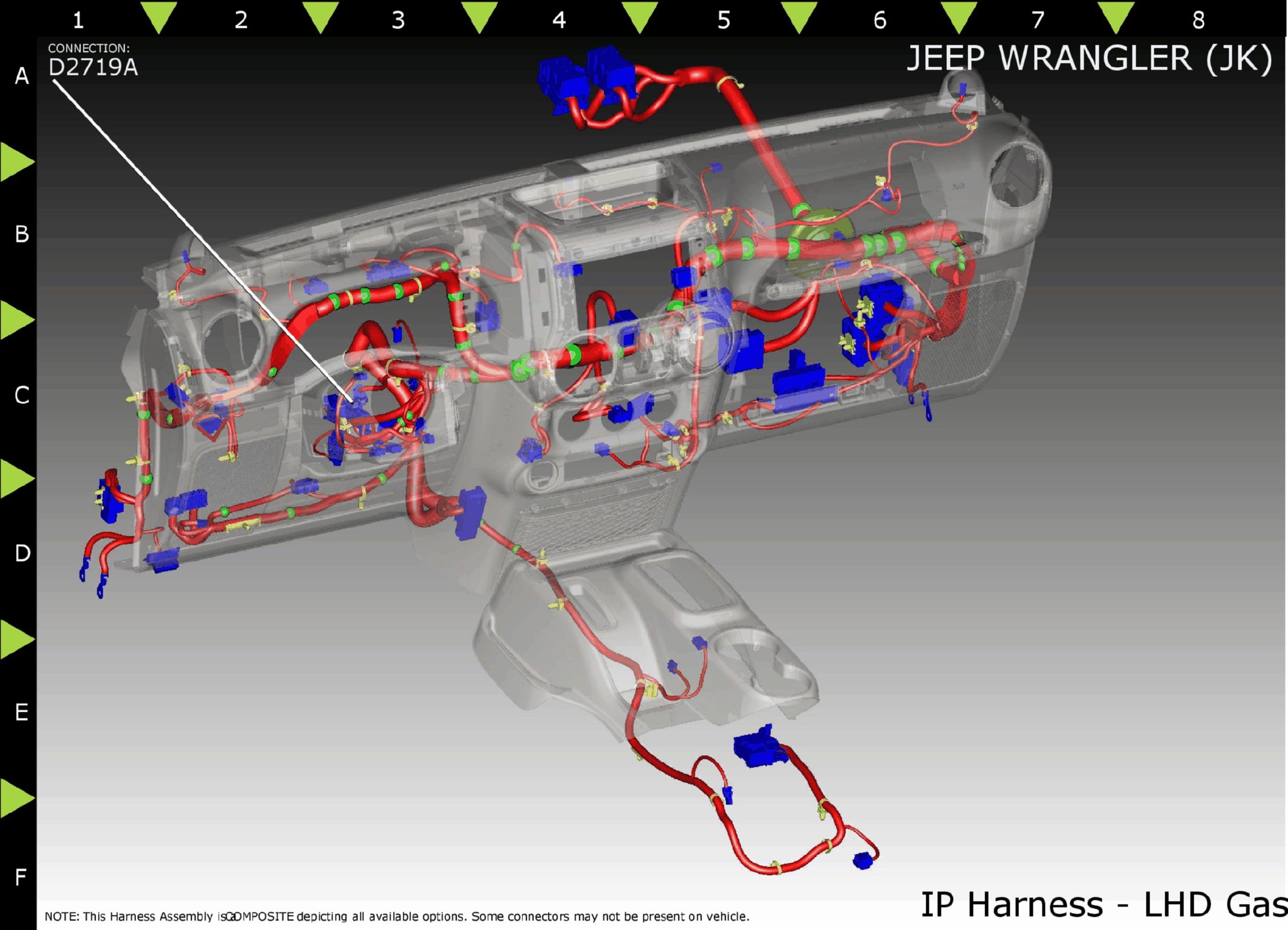

Fig 2: Motor-DC To DC Converter Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z910

BK/WT

GROUND

N/A

A215

RD/LG

FUSED B(+)

N/A

F741

PK/LG

IGNITION RUN/START OUTPUT

N/A

A980

FUSED B(+)

N/A

F943

PK/LG

FUSED IGNITION RUN-START CONTROL OUTPUT

N/A

T750

YL/GY

STARTER RELAY OUTPUT

N/A

F943

PK/LG

FUSED IGNITION RUN-START CONTROL OUTPUT

N/A

D509

WT/OR

LIN BUS

N/A

⁽¹⁾	Pins not listed are not used for this connector
