Latch-Door-Right Rear (Power Locks) (D6618A)

Harness-Family: Door_Right_Rear

Color: BLACK

Gender: FEMALE

Part Number: F881100

Part Description: 1.2MM GLOBAL DOOR LATCH CONN W/O CPA

Connector No: D6618A

Option: POWER LOCKS

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Latch-Door-Right Rear Connector End View (Power Locks)

Courtesy of CHRYSLER

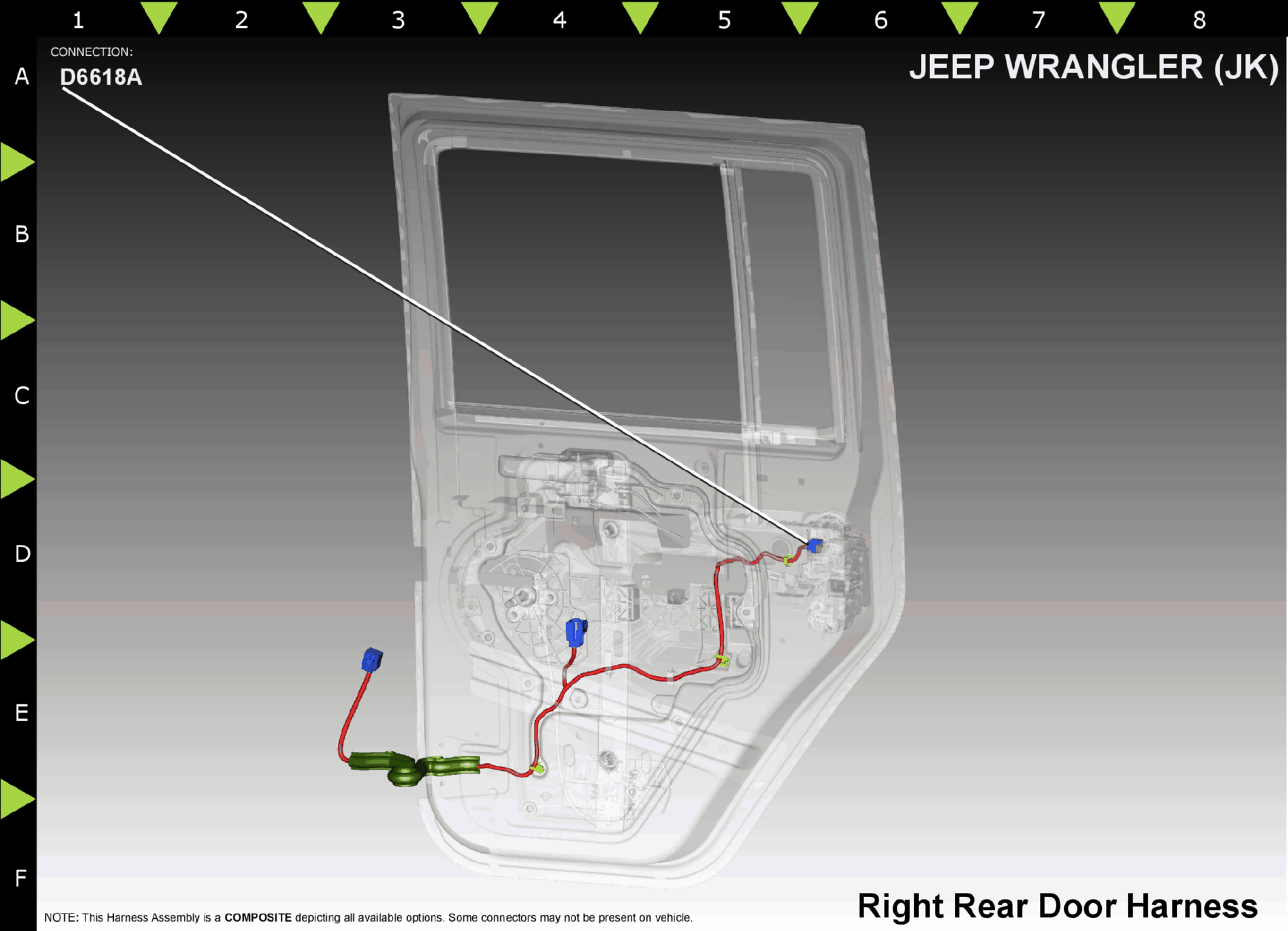

Fig 2: Latch-Door-Right Rear Component Location (Power Locks)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P34

TN/WT

RIGHT REAR DOOR UNLOCK DRIVER

N/A

P38

TN/DB

RIGHT REAR DOOR LOCK DRIVER

N/A

G76

VT/YL

RIGHT REAR DOOR AJAR SWITCH SENSE

N/A

Z912

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
