Lamp-Headlamp-Right C1 (Export) (D4540A)

Harness-Family: Headlamp

Color: ~~

Gender: FEMALE

Part Number: 04794361AA

Part Description: INSULATOR

Connector No: D4540A

Option: EXPORT

Repair Kit Part Number: 05017128AA

Cavity Count: 3

Fig 1: Lamp-Headlamp-Right C1 Connector End View (Export)

Courtesy of CHRYSLER

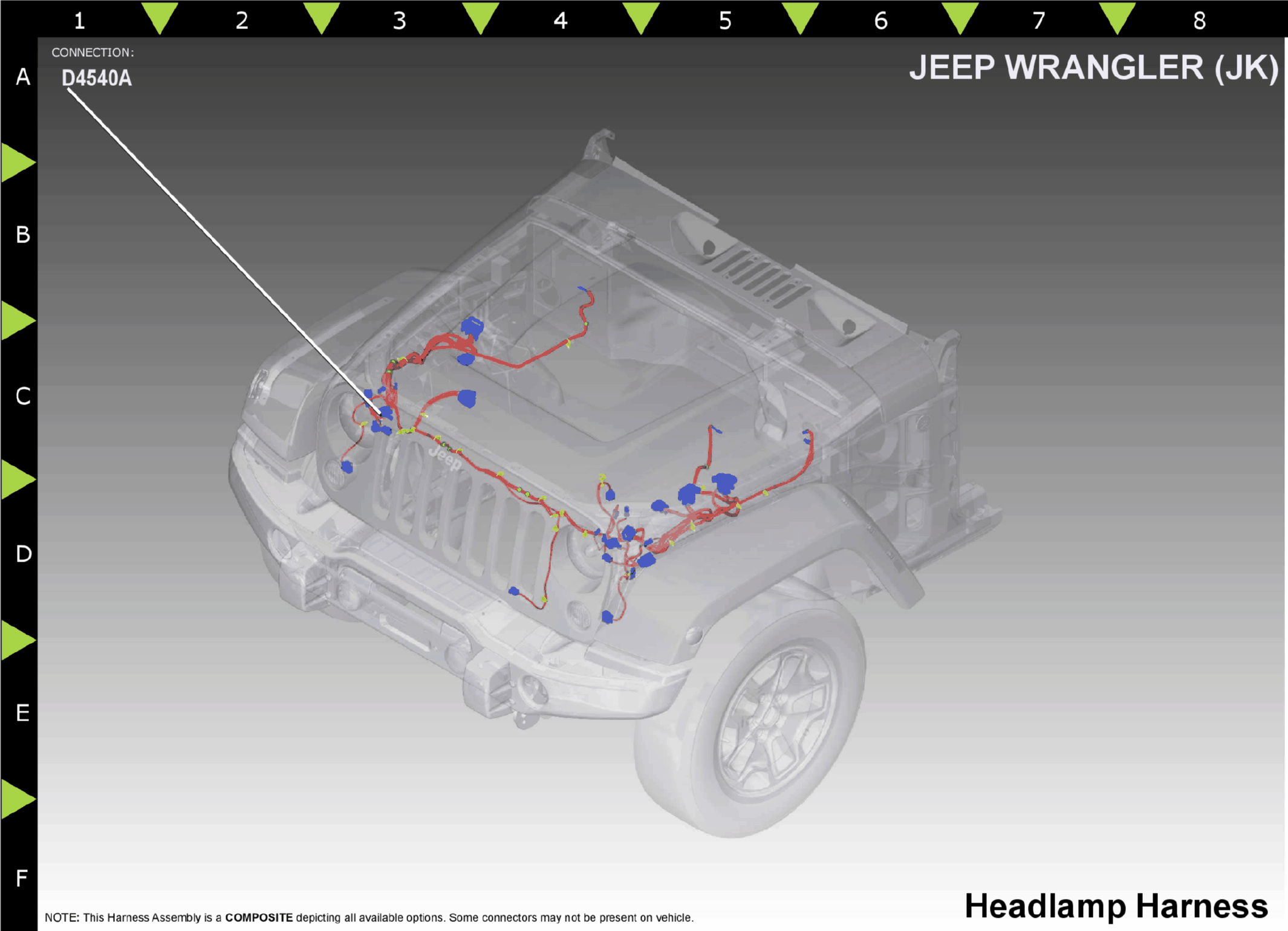

Fig 2: Lamp-Headlamp-Right C1 Component Location (Export)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L34

WT/GY

RIGHT HIGH BEAM DRIVER

N/A

L44

WT/OR

RIGHT LOW BEAM DRIVER

N/A

L910

BK/LG

RIGHT HEADLAMP RETURN SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
