Lamp-Headlamp-Right C1 (D4540B)

Harness-Family: Headlamp

Color: ~~

Gender: MALE

Part Number: J4165001

Part Description: MOLD

Connector No: D4540B

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Lamp-Headlamp-Right C1 Connector End View

GCWD1052455

Courtesy of CHRYSLER

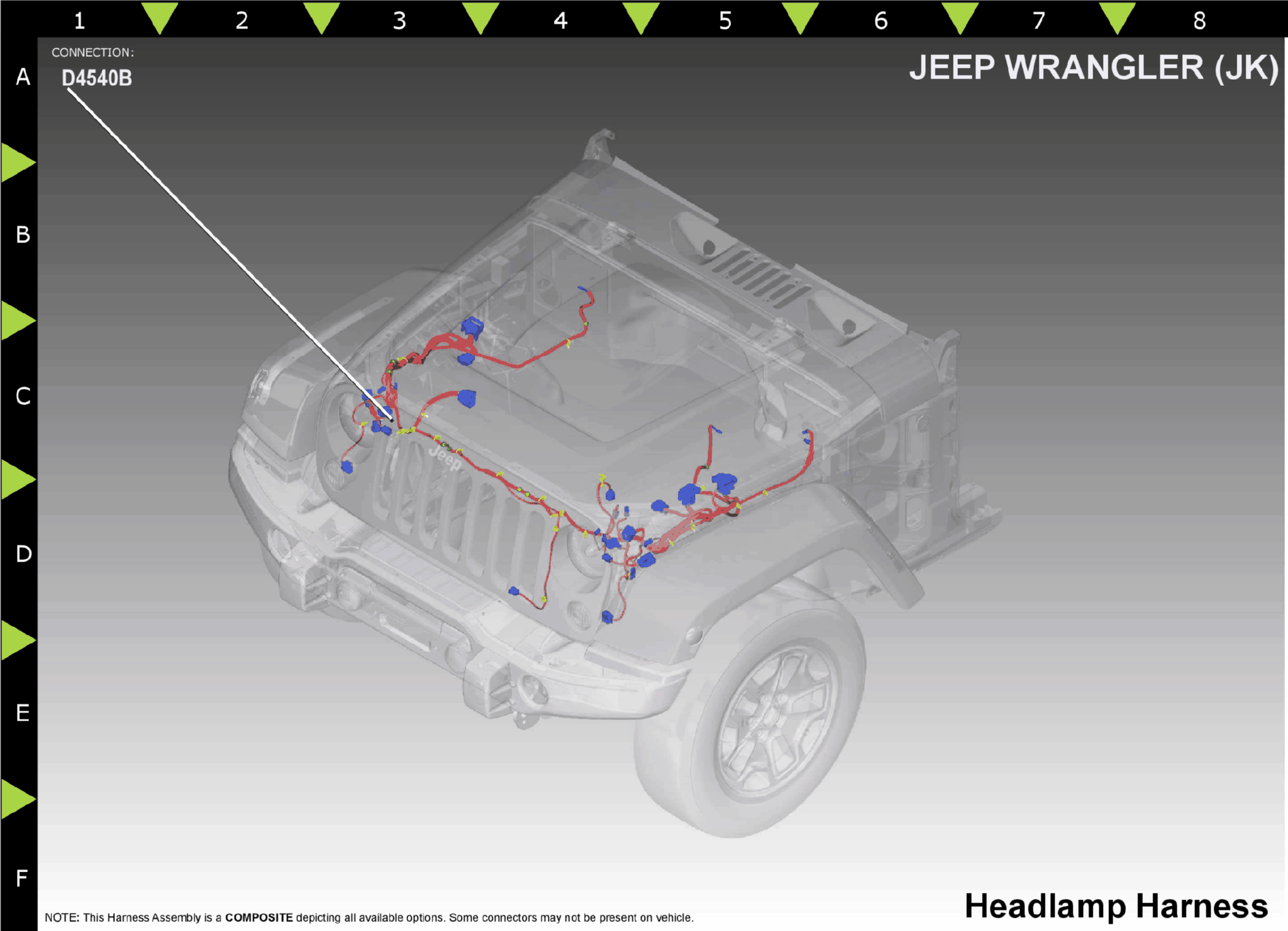

Fig 2: Lamp-Headlamp-Right C1 Component Location

GCWD1051915

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

L60

WT/TN

20

RIGHT FRONT TURN LAMP DRIVER

N/A

2

Z904

BK

20

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
