Lamp-Headlamp-Left C1 (Export) (D4539A)

Harness-Family: Headlamp

Color: BLACK

Gender: FEMALE

Part Number: 04794361AA

Part Description: INSULATOR

Connector No: D4539A

Option: EXPORT

Repair Kit Part Number: 05017128AA

Cavity Count: 3

Fig 1: Lamp-Headlamp-Left C1 Connector End View (Export)

Courtesy of CHRYSLER

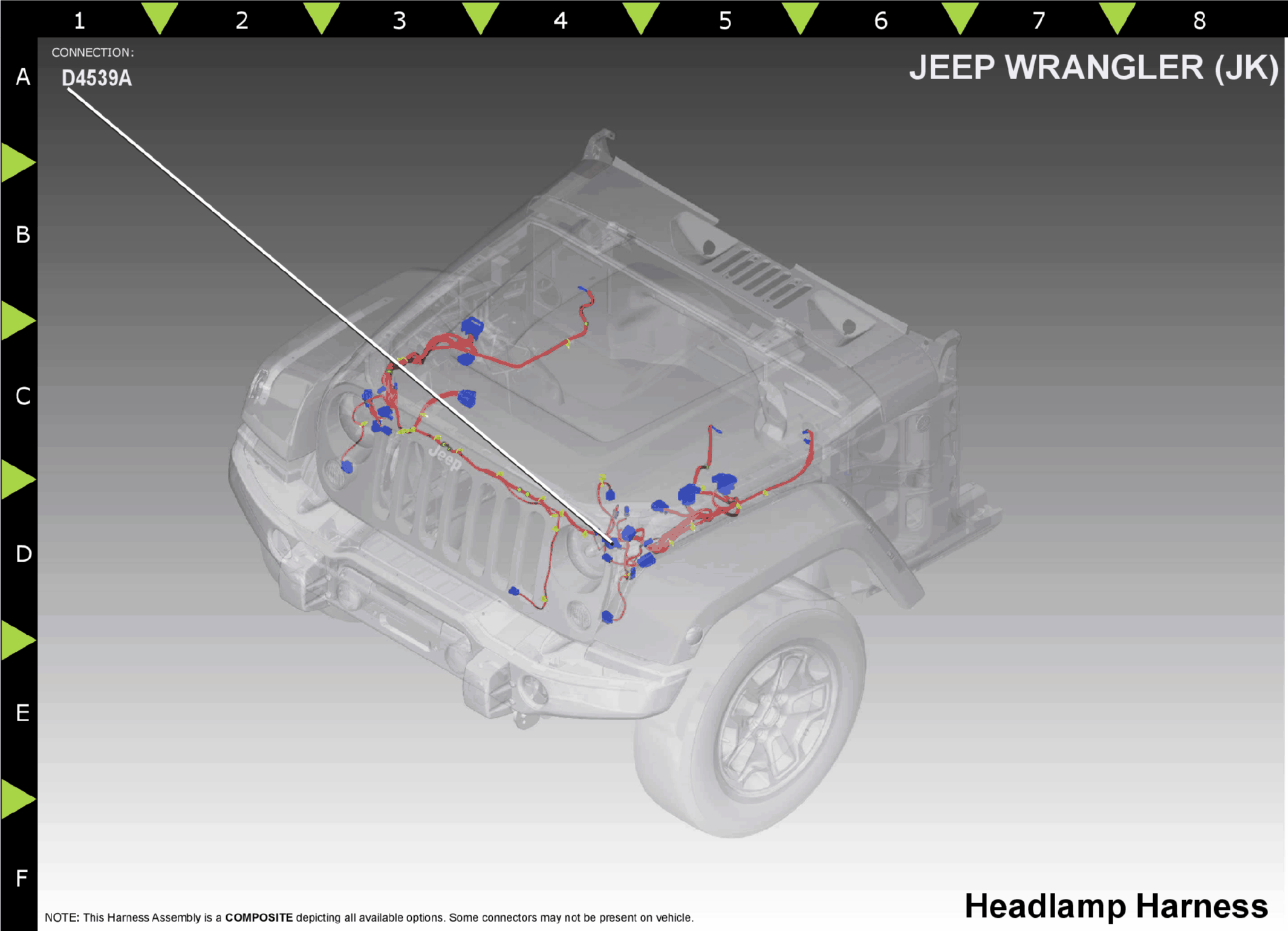

Fig 2: Lamp-Headlamp-Left C1 Component Location (Export)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L33

WT/LG

LEFT HIGH BEAM DRIVER

N/A

L43

WT/DB

LEFT LOW BEAM DRIVER

N/A

L911

BK/LB

LEFT HEADLAMP RETURN SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
