Heater-Seat Cushion-Right (D6719)

Harness-Family: Seat_Pass

Color: BLACK

Gender: FEMALE

Part Number: 7283-5548-30

Part Description: CONNECTOR - YESC SUB ASSEMBLY

Connector No: D6719

Option: ~~

Repair Kit Part Number: 68068632AA

Cavity Count: 2

Fig 1: Heater-Seat Cushion-Right Connector End View

Courtesy of CHRYSLER

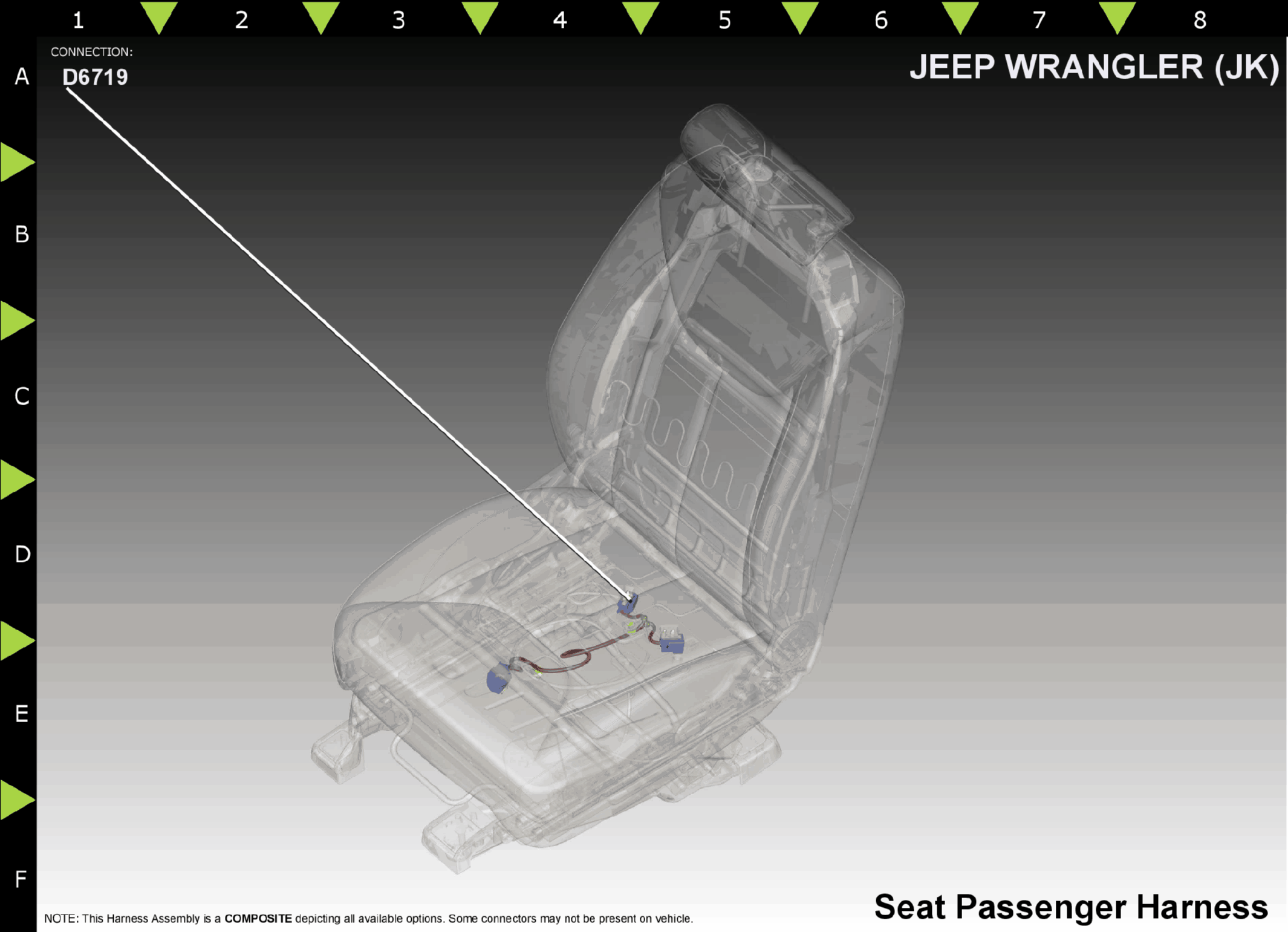

Fig 2: Heater-Seat Cushion-Right Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P188

LG/VT

RIGHT FRONT SEAT HEATER CONTROL

N/A

Z912

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
