Fuse M24 25A - (TIPM) (Fm24)

Harness-Family: TIPM_Internal

Color: ~~

Gender: FEMALE

Part Number: FUSE-CKT_BREAKER

Part Description: Not Available

Connector No: FM24

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse M24 25a - (TIPM) Connector End View

GCWD1006305

Courtesy of CHRYSLER

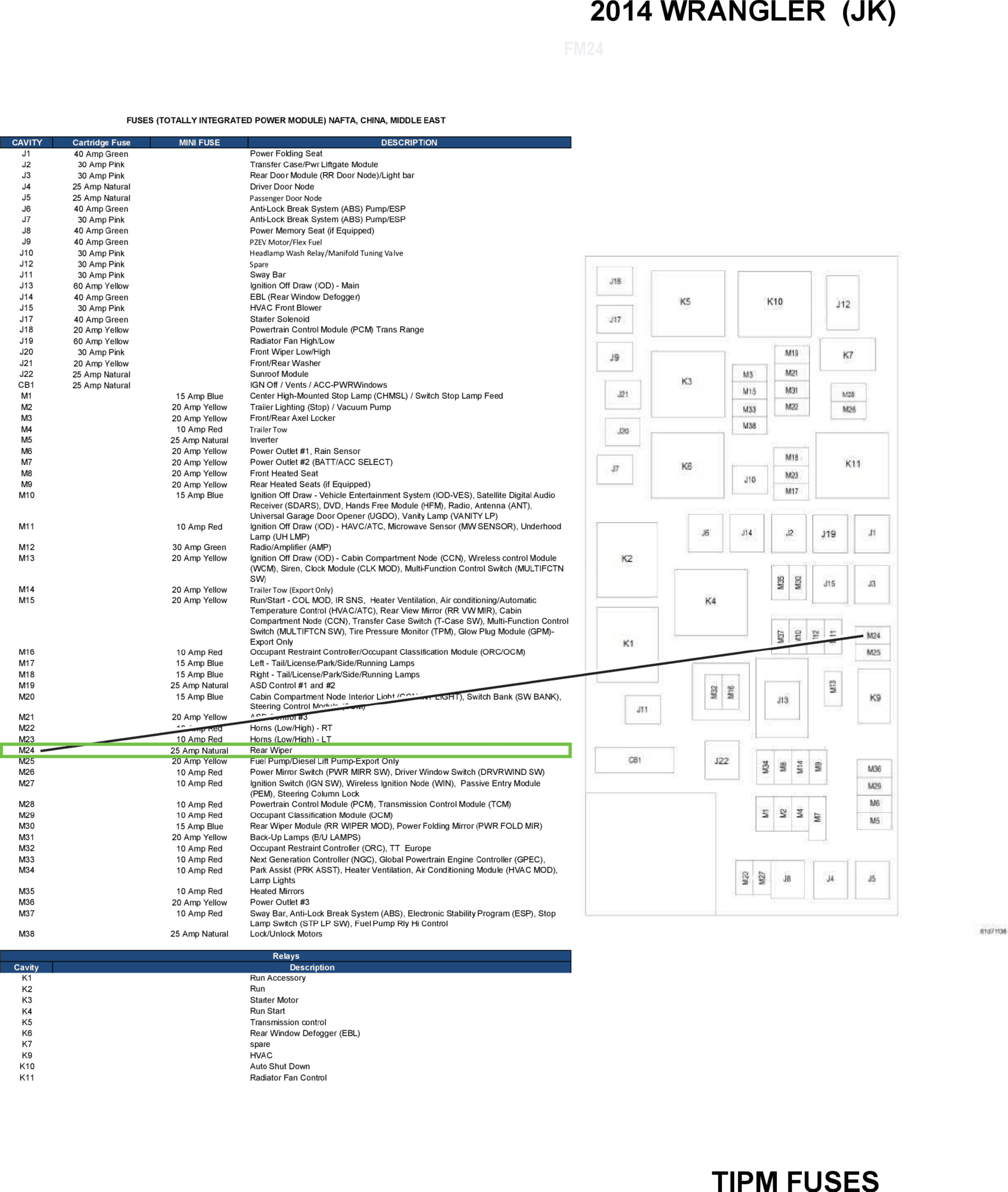

Fig 2: Fuse M24 25a - (TIPM) Component Location

GCWD1051244

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

W13

INTERNAL

N/A

REAR WIPER MOTOR CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
