Fuse J19 60A - (TIPM) (FJ19)

Harness-Family: TIPM_Internal

Color: ~~

Gender: FEMALE

Part Number: FUSE-CKT_BREAKER

Part Description: Not Available

Connector No: FJ19

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse J19 60a - (TIPM) Connector End View

GCWD1006305

Courtesy of CHRYSLER

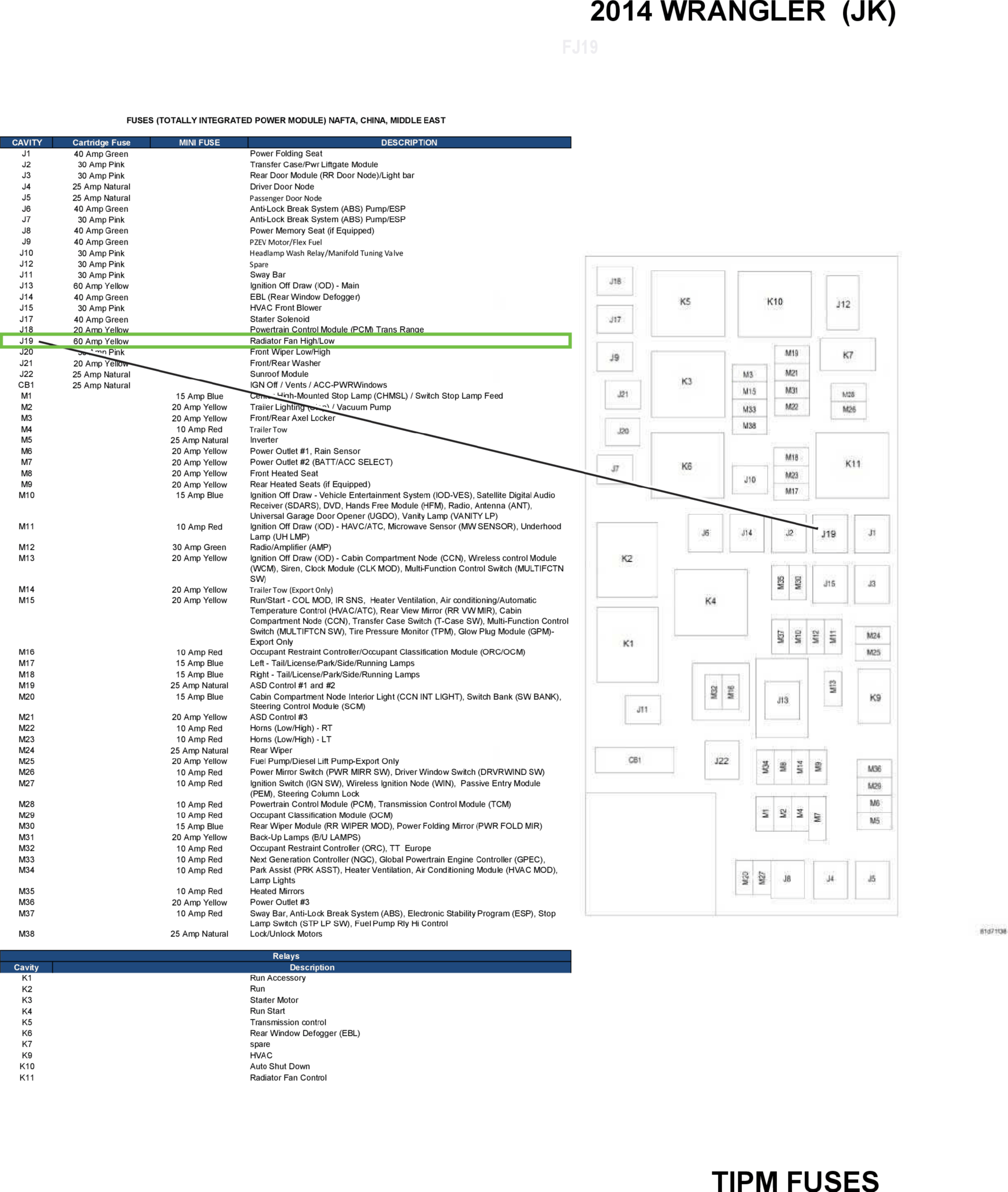

Fig 2: Fuse J19 60a - (TIPM) Component Location

GCWD1050479

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

A16

INTERNAL

N/A

CAN C (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
