Coil-Ignition 5 (D5208A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 1-1924067-1

Part Description: 1.2 STANDARD LATCH VERSION CONN W/O CPA

Connector No: D5208A

Option: ~~

Repair Kit Part Number: 68137867AA

Cavity Count: 2

Fig 1: Coil-Ignition 5 Connector End View

Courtesy of CHRYSLER

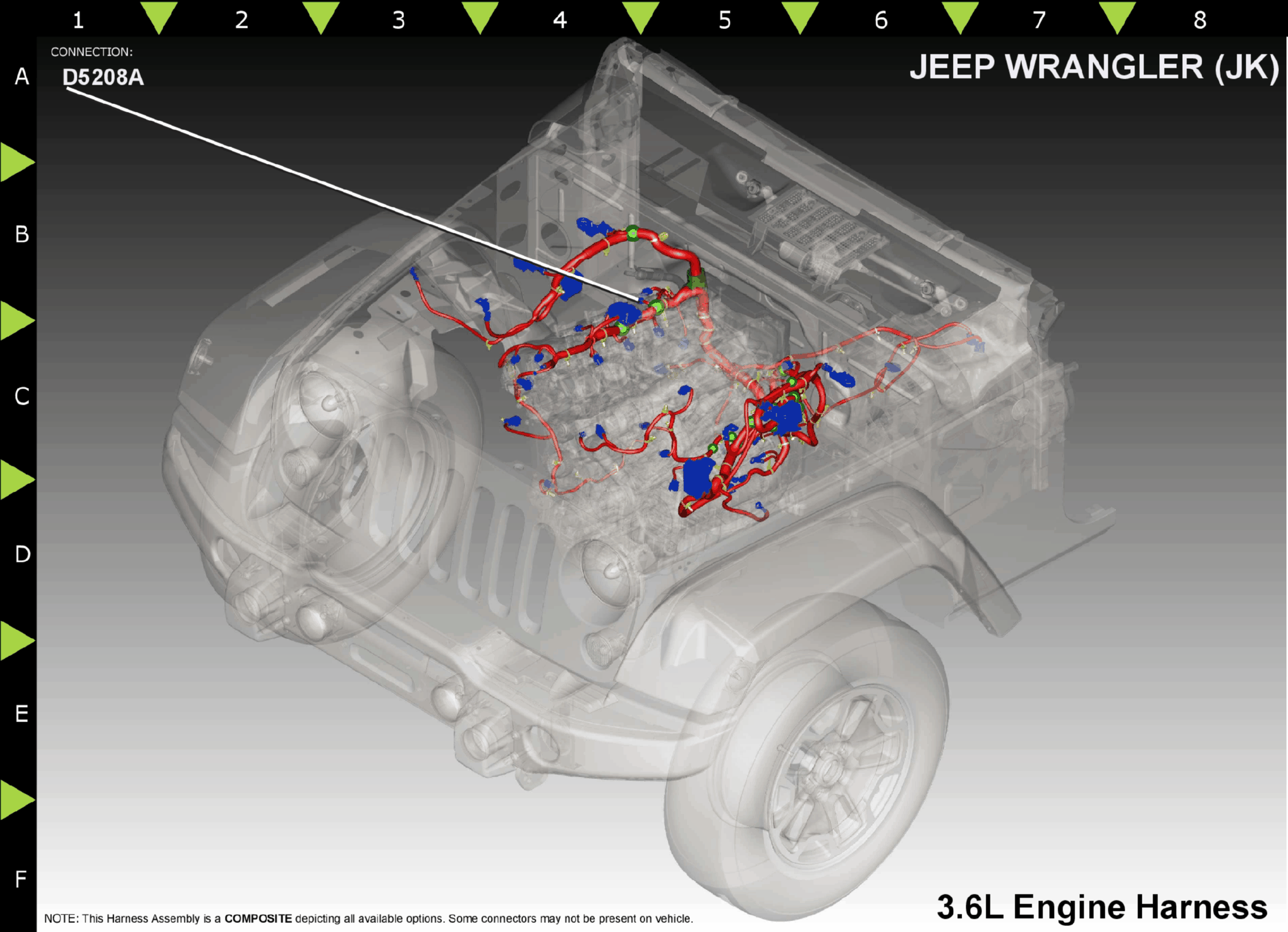

Fig 2: Coil-Ignition 5 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K16

DB/YL

COIL CONTROL 5

N/A

F342

BR/WT

ASD CONTROL OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
