Antenna-Satellite Radio (D5928A)

Harness-Family: Antenna_SDARS

Color: CURRY

Gender: MALE

Part Number: 6-1438912-0

Part Description: JACK KIT RG-316 OR RG-174, FAKRA, SMB

Connector No: D5928A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Antenna-Satellite Radio Connector End View

Courtesy of CHRYSLER

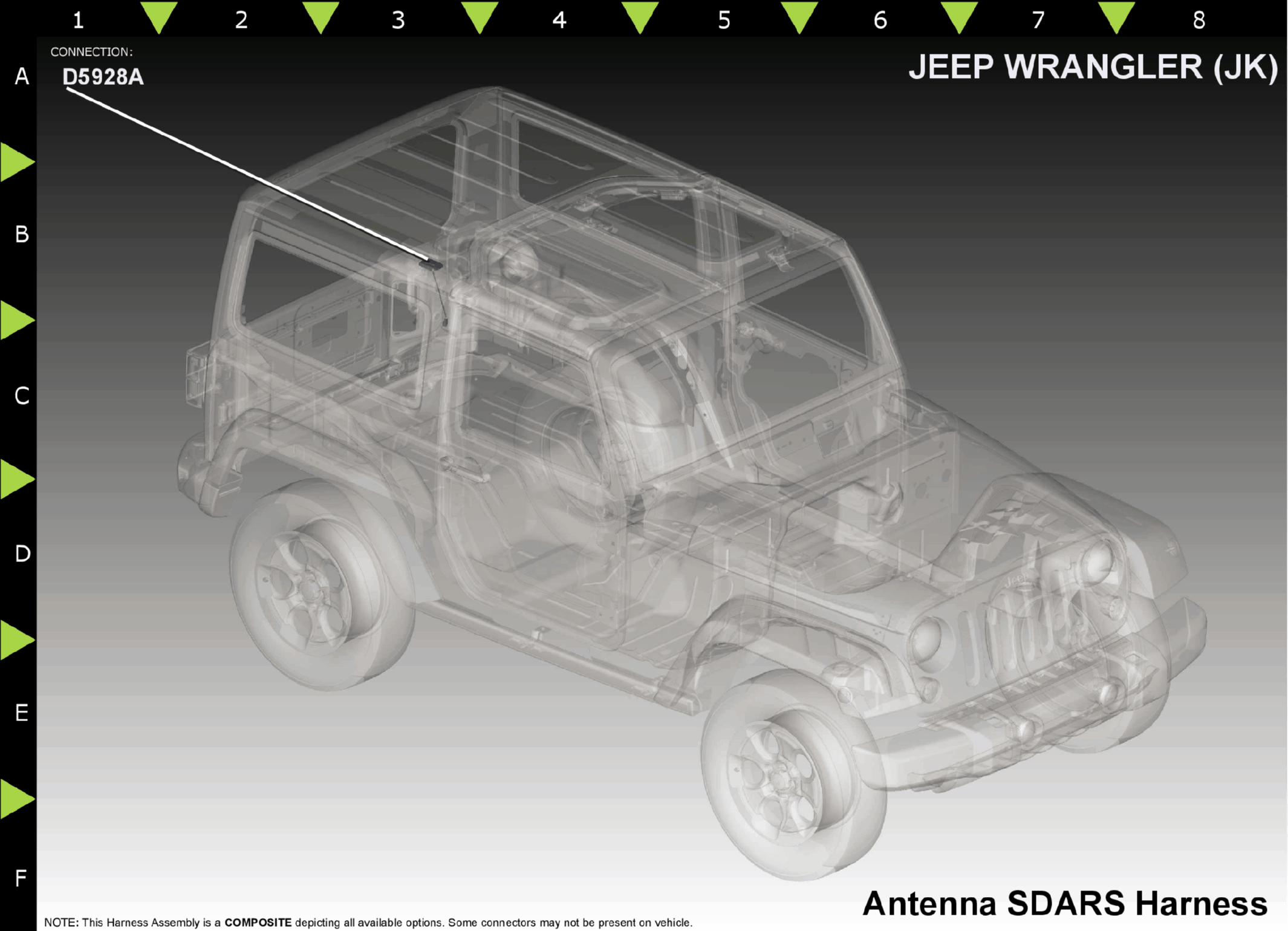

Fig 2: Antenna-Satellite Radio Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D106

SATELLITE RADIO ANTENNA SIGNAL

N/A

D126

SATELLITE RADIO ANTENNA SHIELD

N/A

⁽¹⁾	Pins not listed are not used for this connector
