Airbag-Side Thorax-Right (D6680)

Harness-Family: Seat_Pass_2

Color: BLACK

Gender: FEMALE

Part Number: 54550266

Part Description: CONNECTOR ASSEMBLY (ABX-3 AIRBAG)

Connector No: D6680

Option: ~~

Repair Kit Part Number: 68053130AA

Cavity Count: 2

Fig 1: Airbag-Side Thorax-Right Connector End View

Courtesy of CHRYSLER

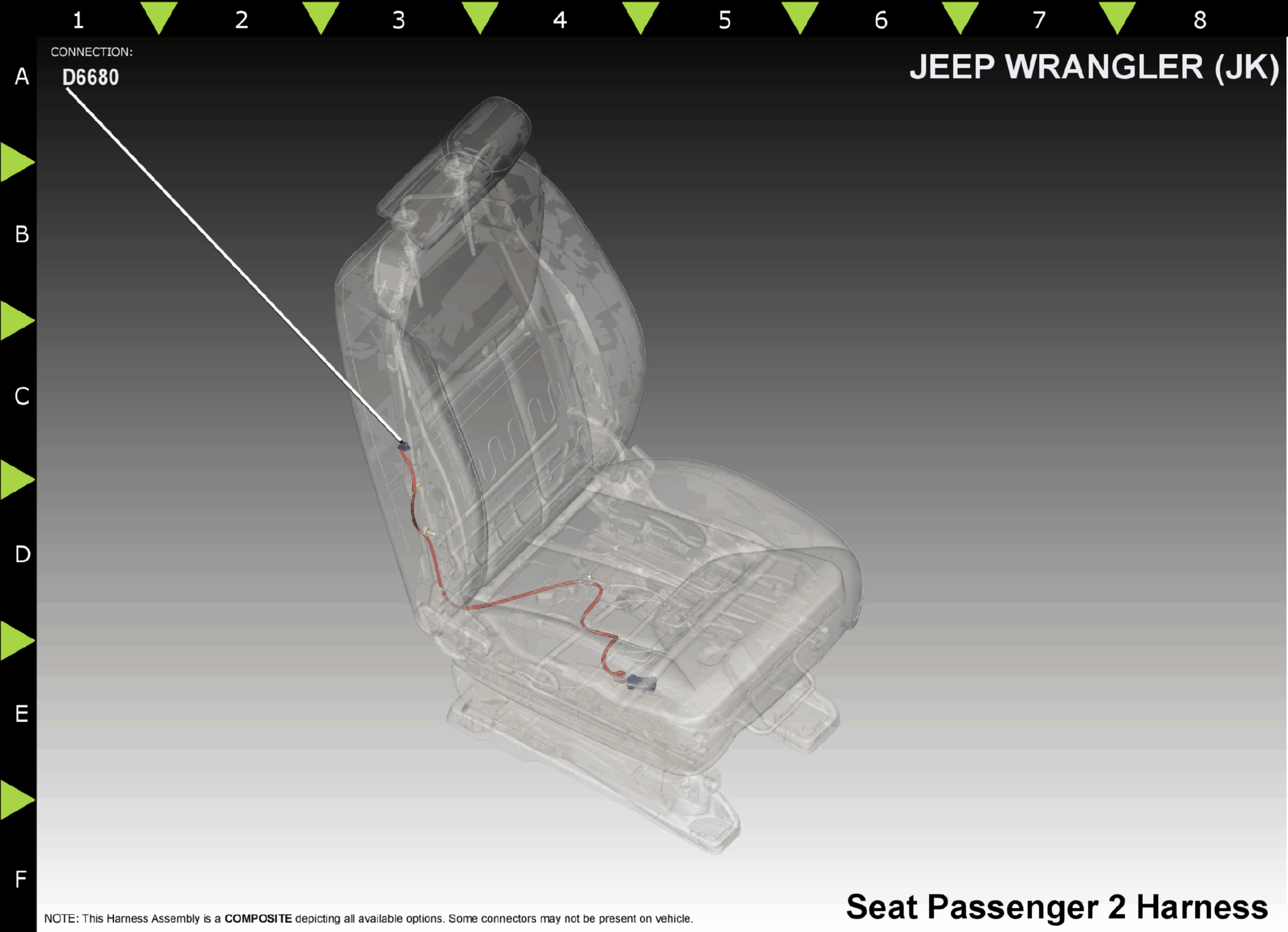

Fig 2: Airbag-Side Thorax-Right Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R32

LG/OR

HEAD THORAX RIGHT (+)

N/A

R34

LG/WT

HEAD THORAX RIGHT (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
