Seat Belt-Retractor TENSIONER-Passenger (D6676A)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 7283-7491-70

Part Description: Not Available

Connector No: D6676A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Seat Belt-Retractor Tensioner-Passenger Connector End View

Courtesy of CHRYSLER

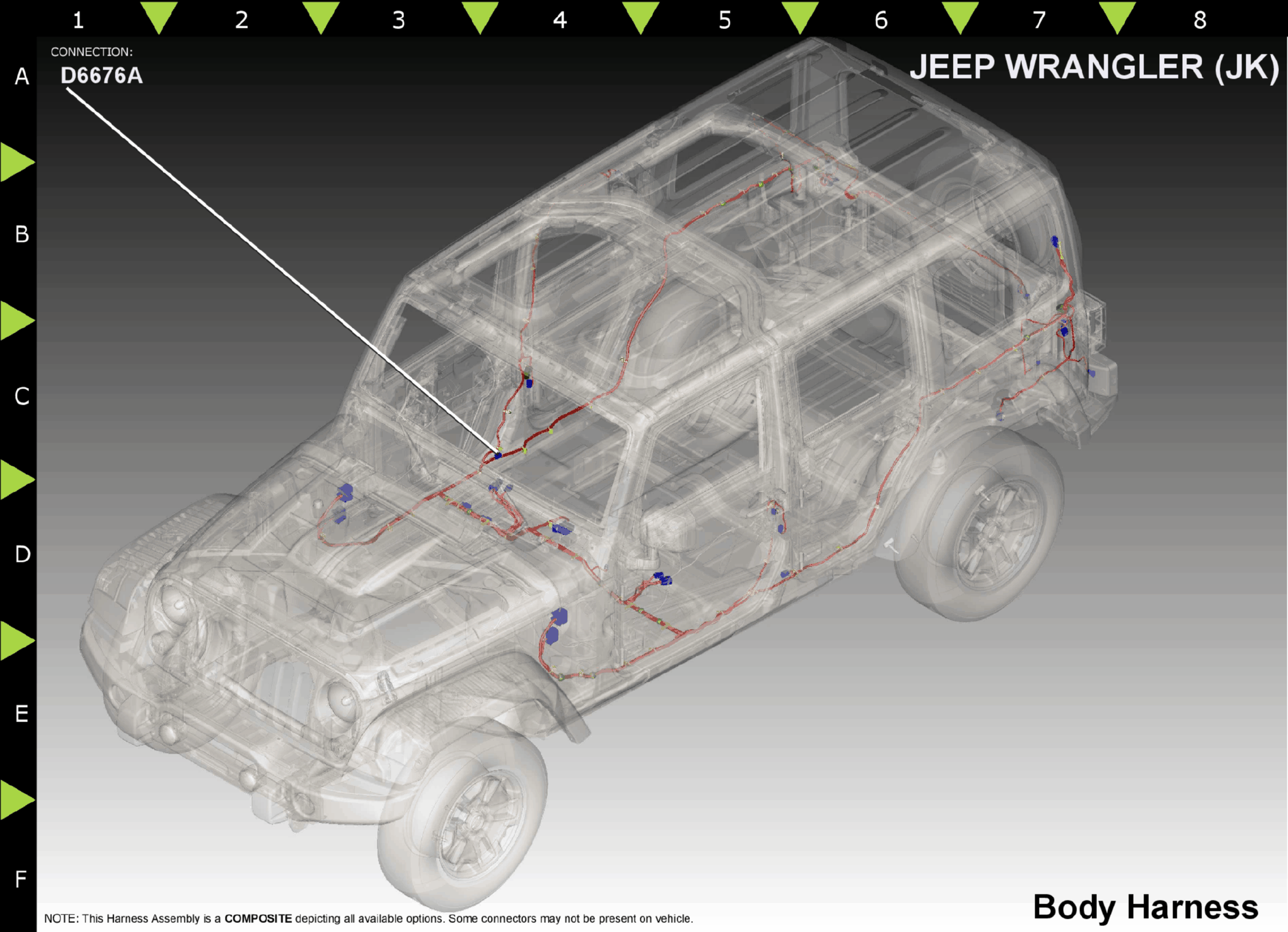

Fig 2: Seat Belt-Retractor Tensioner-Passenger Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R504

LB/YL

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R506

LB/DG

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
