A-Pillar Foam

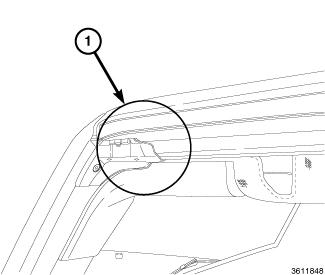

Fig 1: Bad (Missing Foam Seal)

GC0148354

Courtesy of CHRYSLER GROUP, LLC

NOTE:

This issue/repair applies to both hard and soft top vehicles

Inspect the freedom panel or side rail for damaged / missing foam.
If the foam is damaged or missing (1), replace the foam using the foam kit available through Mopar Parts.

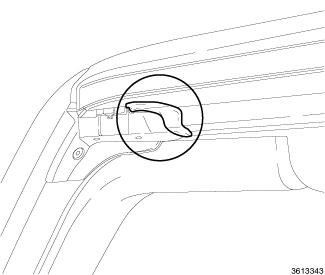

Fig 2: Good Foam Seal
Courtesy of CHRYSLER GROUP, LLC

The foam seal installed correctly, will appear as this -

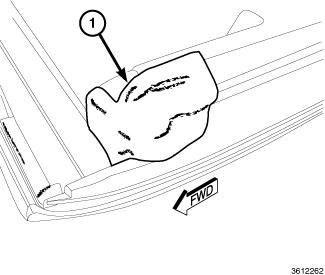

Fig 3: Foam
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Right side panel shown, Left side typical

NOTE:
The foam installation is similar for the soft top rail
Install the foam (1) to the freedom panel as shown.
