Panel, A-Pillar Trim: Removal: Removal

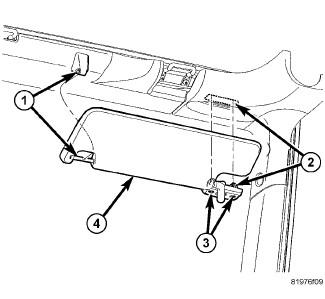

Fig 1: Visor

Courtesy of CHRYSLER GROUP, LLC

Remove the sun visor (4). Refer to VISOR, REMOVAL .

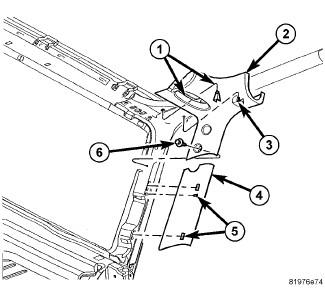

Fig 2: Identifying A-Pillar Trim Components
Courtesy of CHRYSLER GROUP, LLC
Remove the push pin fastener (6).
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the retaining clips (3) and remove the upper A-pillar trim (2).
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the retaining clips (5) and remove the lower A-pillar trim (4).
