Step, Side: Removal: Removal

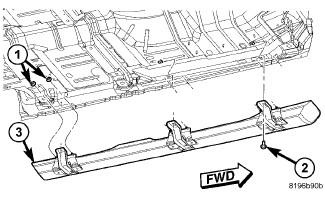

Fig 1: Identifying Side Step Components
GC0131412Courtesy of CHRYSLER GROUP, LLC
  1. Remove the bolts (2).
  2. Remove the sill nuts (1) and separate the step (3) from the sill flange.
