Cable, Tension: Removal: Removal

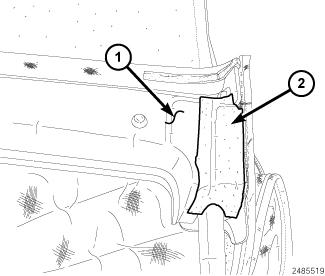

Fig 1: Removing/Installing Foam Tape
GC0139251Courtesy of CHRYSLER GROUP, LLC
  1. Release the soft top latches and open the soft top.
  2. Remove the foam tape (2) and expose the screws.

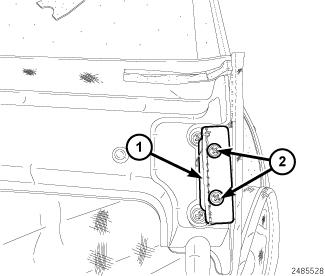

    Fig 2: Removing/Installing Screws
    GC0139252Courtesy of CHRYSLER GROUP, LLC
  3. Remove the screws (2) and release the cable tab (1).

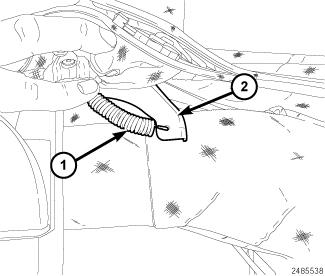

    Fig 3: Cable Spring
    GC0139253Courtesy of CHRYSLER GROUP, LLC
  4. Release the rear quarter window.
  5. Position the soft top aside and release the cable spring (1).
  6. Position the top in the full up position, unlatched and remove the cable.
