Insulator, Engine Mount, Rear: Removal: Removal

Fig 1: Rear Engine Mount Isolator, Transmission Crossmember Support Brackets & Bolts

Courtesy of CHRYSLER GROUP, LLC

4x4 rear engine mount isolator shown in illustration, 4x2 rear engine mount isolator similar.

1. Raise and support the vehicle.
2. Using a suitable jack, support transmission.
3. Remove the rear engine mount isolator retaining bolts (1).
4. Using a suitable jack, slightly raise the transmission to relieve the load on the crossmember.
5. Remove the both transmission crossmember support bracket retaining bolts (2, 3) and remove support brackets.

   Right side crossmember retaining bolts shown in illustration, left side crossmember retaining bolts similar.

6. Remove the transmission crossmember retaining bolts (4) and remove the crossmember.

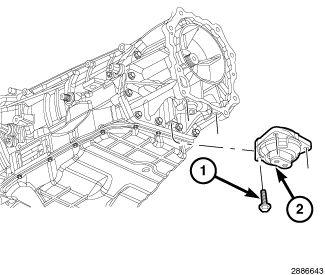

   Fig 2: Rear Engine Mount Isolator & Retaining Bolts

   Courtesy of CHRYSLER GROUP, LLC

   4x4 rear engine mount isolator shown in illustration, 4x2 rear engine mount isolator similar.

7. Remove the rear engine mount isolator retaining bolts (1)
8. Remove the rear engine mount isolator (2).
