Camshaft, Engine: Removal: Camshaft

WARNING: This page is about a different variant/trim than selected.

Fig 1: Oil Fill Cap & Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Remove the oil fill cap (1).
Remove the engine cover (2).

Fig 2: Negative Battery Cable
Courtesy of CHRYSLER GROUP, LLC
Disconnect and isolate the negative battery cable (3).
Remove the engine from the vehicle. Refer to REMOVAL, 5.7L .
Place the engine on a suitable engine stand.

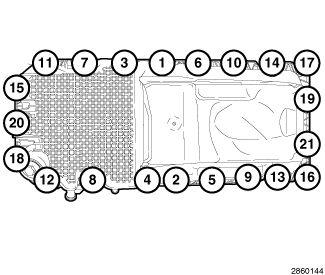

Fig 3: Remove/Install Oil Pan Retaining Bolts
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The oil pump pickup tube, windage tray and oil pan is one assembly. When the oil pan is removed, a new oil pan gasket and pickup tube O-ring must be installed. The old gasket and O-ring cannot be reused.
Remove the engine oil dipstick.
Using the sequence shown in illustration, remove the oil pan retaining bolts.
Remove the oil pan and discard the oil pan gasket and pickup tube O-ring.
Clean the sealing surfaces as necessary.

Fig 4: Ignition Coil Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the ignition coil retaining bolts (3).
Remove the ignition coils (2).

Fig 5: Cylinder Head Cover Removal/Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Using the sequence shown in illustration, remove the cylinder head cover retaining bolts.
Remove the cylinder head cover (2).

Fig 6: Cylinder Head Cover Gasket & Cylinder Head Cover
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The cylinder head cover gasket (1) may be used again, provided no cuts, tears, or deformation have occurred.
Inspect the cylinder head cover gasket (1), replace if necessary.

Fig 7: Rocker Shafts Retaining Bolt Removal & Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

Right cylinder head shown in illustration, left cylinder head similar.

NOTE:
The rocker arms and push rods must be installed in their original location as removed.
Remove the rocker arms and push rods. Note their location to ensure installation in their original locations as removed. Refer to ROCKER ARM, VALVE, REMOVAL, 5.7L .

Fig 8: Cylinder Head Bolt Removal & Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

Right cylinder head shown in illustration, left cylinder head similar.
Using the sequence shown in illustration, remove the cylinder head bolts.
Remove the cylinder head(s) and discard the cylinder head gasket(s).
Remove timing case cover. Refer to COVER(S), ENGINE TIMING, REMOVAL, 5.7L .

Fig 9: Removing/Installing Hydraulic Roller Tappet
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Identify lifters to ensure installation in original location.
Remove the lifters (2) and retainer (1) as an assembly.

Fig 10: Oil Pump Retaining Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the oil pump retaining bolts (2) and remove the oil pump (1).

Fig 11: Timing Chain, Sprockets, Timing Chain Tensioner & Guide
Courtesy of CHRYSLER GROUP, LLC
Remove timing chain (5). Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL, 5.7L .

Fig 12: Camshaft Thrust Plate
Courtesy of CHRYSLER GROUP, LLC
Remove camshaft thrust plate (1).

Fig 13: Removing/Installing Camshaft
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Slowly rotate the camshaft while pulling camshaft out.
Install a long bolt (2) into front of camshaft (1) to aid in removal of the camshaft. Remove camshaft, being careful not to damage cam bearings with the cam lobes.
