Right Camshaft

WARNING: This page is about a different variant/trim than selected.

Fig 1: Exhaust Camshaft Gear Timing Mark & Intake Camshaft Timing Gear Mark

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The (special tool #VM.10339, Tool, Crankshaft Timing) should installed prior to timing camshafts.

Fig 2: Right Camshaft Gear Dots

Courtesy of CHRYSLER GROUP, LLC

The exhaust camshaft gear timing mark (1) should be at the four O'clock position and the intake camshaft timing gear mark (2) should be at the seven O'clock position.
Rotate the camshafts to line up the three camshaft gear dots and install the (special tool #VM.10338A-1, Timing Tool, Camshaft (Right)) (1).

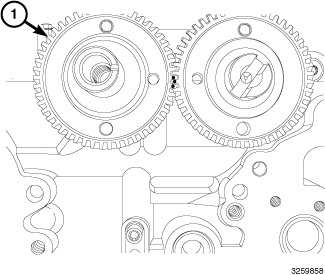

Fig 3: Camshaft Timing Tool & Sprockets Holes - Right
Courtesy of CHRYSLER GROUP, LLC
If the (special tool #VM.10338A-1, Timing Tool, Camshaft (Right)) (1) locking pins don't align up and fit into the holes (2) on the camshaft gears then the camshafts are not timed properly.
