Left Camshaft

WARNING: This page is about a different variant/trim than selected.

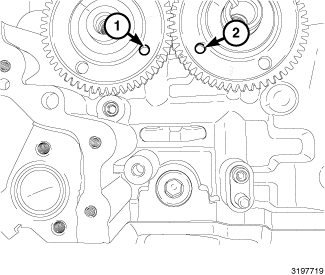

Fig 1: Intake Camshaft Gear Timing Mark & Exhaust Camshaft Timing Gear Mark

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The (special tool #VM.10339, Tool, Crankshaft Timing) should installed prior to timing camshafts.

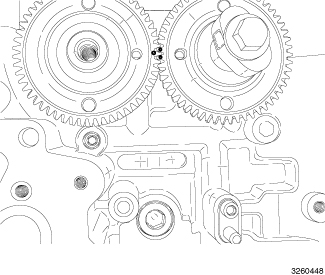

Fig 2: Left Camshaft Gear Dots

Courtesy of CHRYSLER GROUP, LLC

The intake camshaft gear timing mark (1) should be at the four O'clock position and the exhaust camshaft timing gear mark (2) should be at the seven O'clock position.
Rotate the camshafts to line up the three camshaft gear dots and install the (special tool #VM.10338A-2, Timing Tool, Camshaft (Left)) (1).

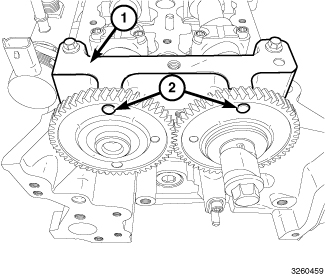

Fig 3: Camshaft Timing Tool & Sprockets Holes - Left
Courtesy of CHRYSLER GROUP, LLC
If the (special tool #VM.10338A-2, Timing Tool, Camshaft (Left)) (1) locking pins don't align up and fit into the holes (2) on the camshaft gears then the camshafts are not timed properly.
